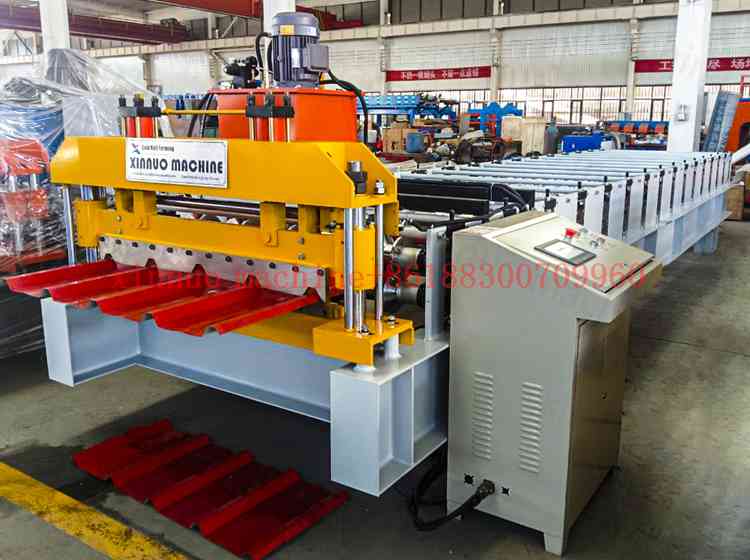

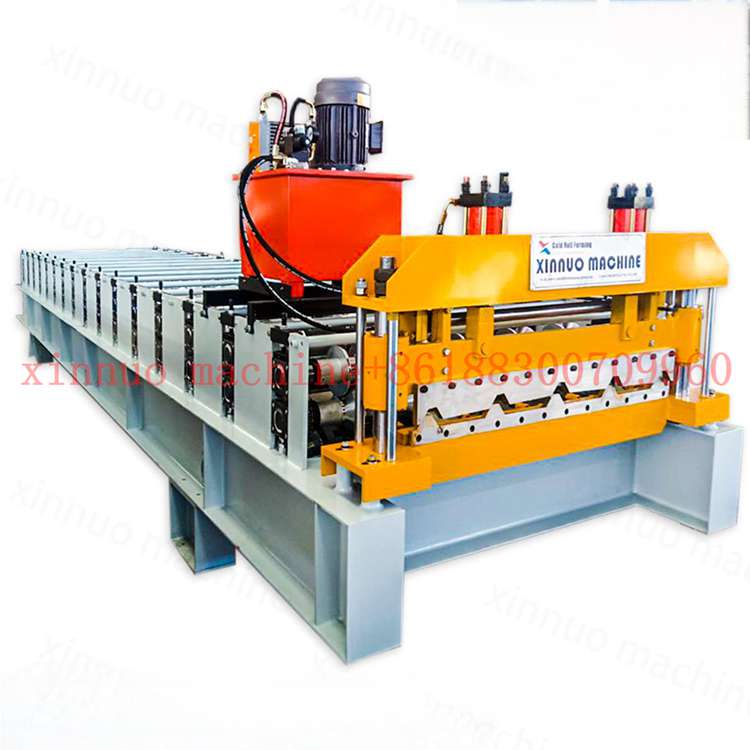

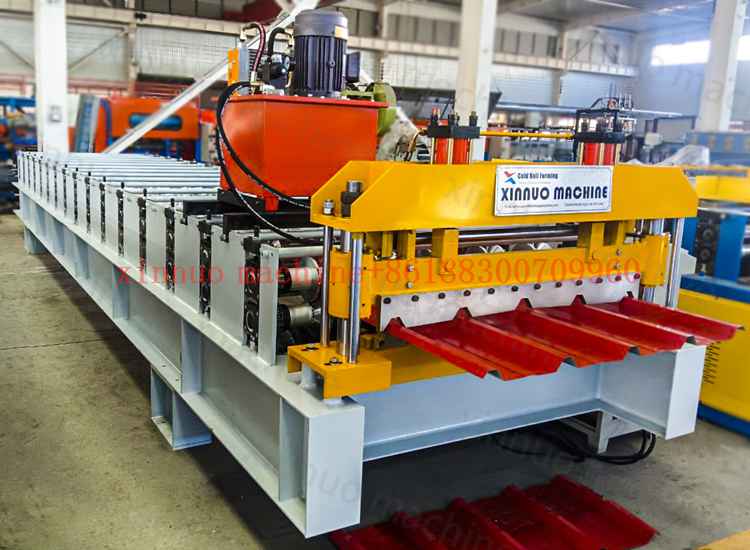

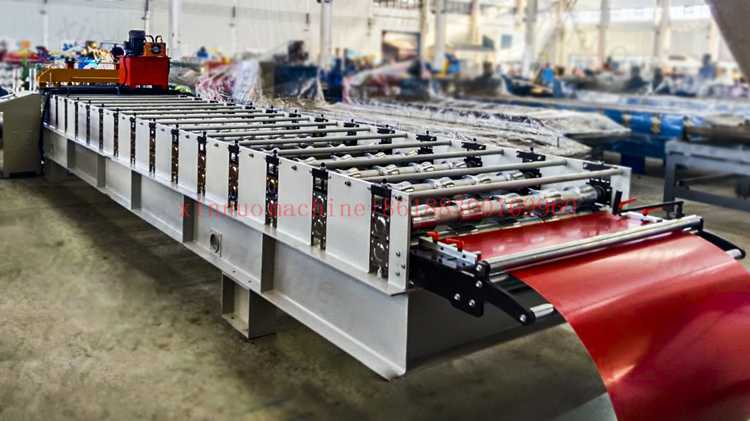

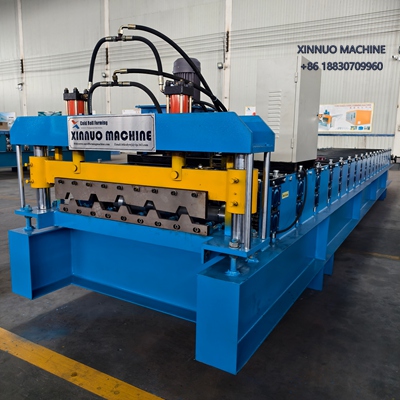

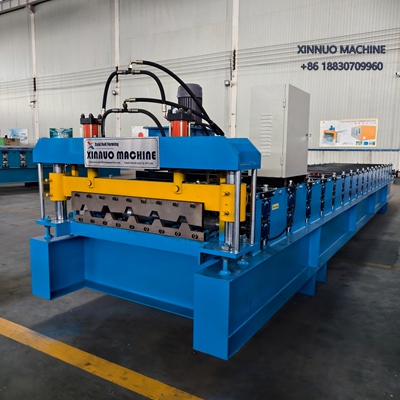

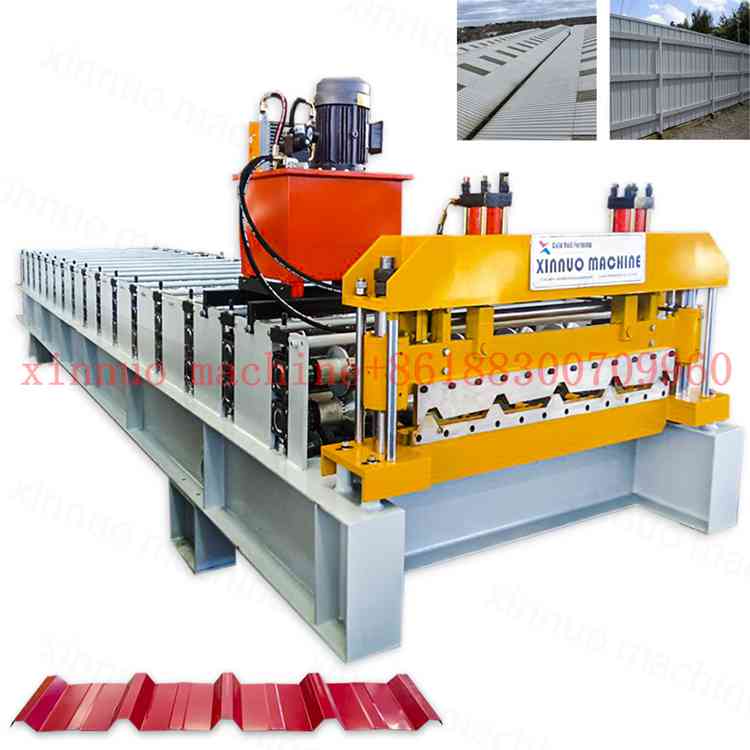

TR5 Trapezoidal Panel Roll Forming Machine Introduction
Xinnuo Roll Forming Machine Co., Ltd, with over 30 years of experience in the design and manufacturing of cold roll forming equipment, has developed the TR5 Trapezoidal Panel Roll Forming Machine. This equipment is designed to precisely and efficiently produce standard TR5 trapezoidal sheets. It is widely used for roofing and wall cladding in industrial workshops, warehouses, garages, prefabricated buildings, and agricultural structures.

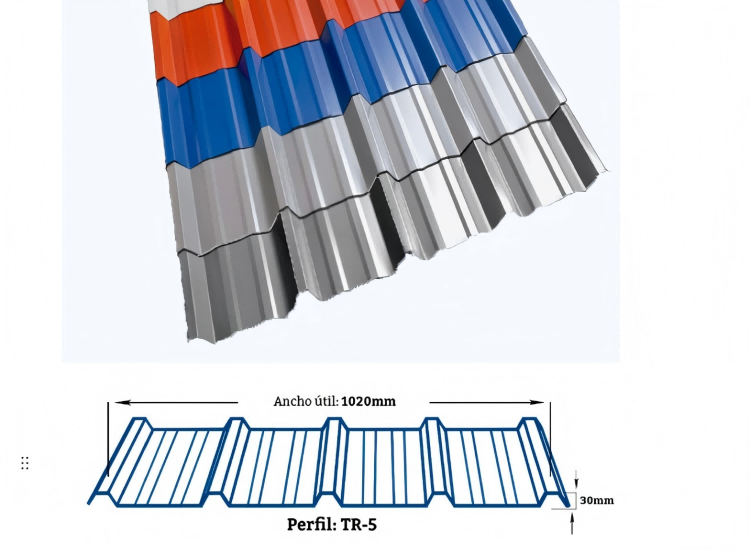

1. TR5 Sheet Profile Parameters (Standard)
Profile Name：TR5 (5-rib trapezoidal sheet)
Number of Ribs：5 ribs
Rib Height：28–32 mm
Rib Pitch：205 mm (center distance)
Effective Width：1,000 mm
Coil Width：1,200–1,250 mm
Material Thickness ：0.3 – 0.8 mm
Applicable Materials：Galvanized steel, PPGI, Aluzinc, Aluminum
2. Technical Specifications (Standard Configuration)

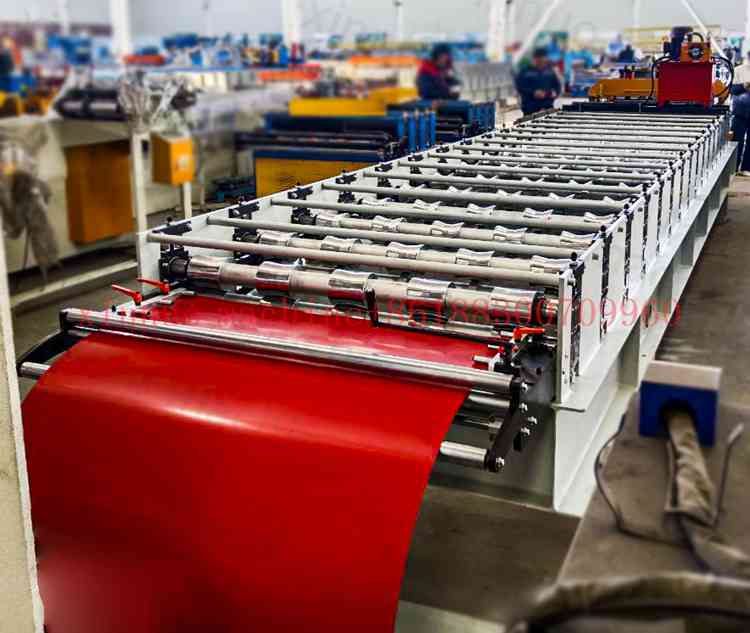

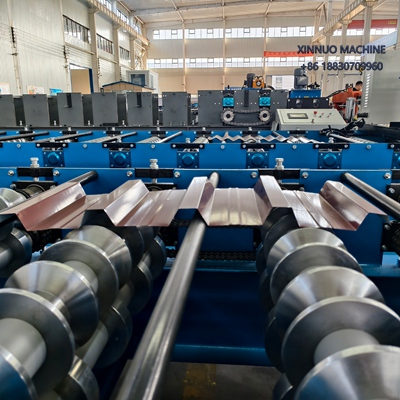

Number of Forming Stations：18–22 rows (customizable)
Forming Speed：10–15 meters/min
Roller Material：45# steel tempered + hard chrome / GCr15 quenched steel (optional)
Shaft Diameter：70 mm or 75 mm
Transmission Type：Chain drive

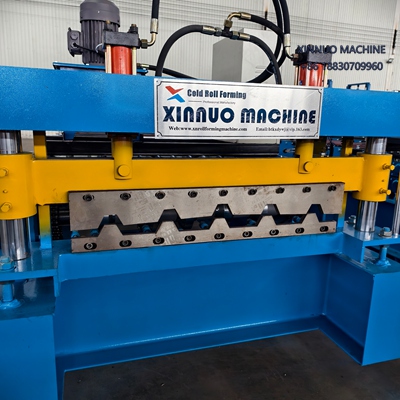

Cutting System：Hydraulic cutting or servo flying shear

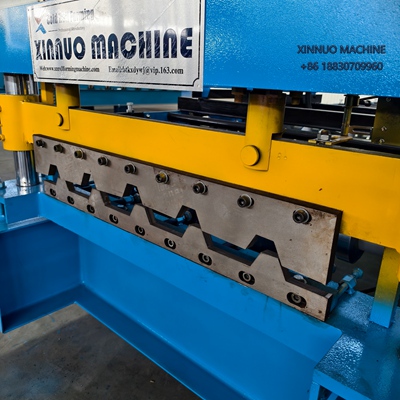

Cutting Die Material：Cr12MoV mold steel, heat-treated to HRC58+
Control System：Fully automatic PLC (Siemens/Mitsubishi/Xinje), with touch screen
Operation Language：Multi-language interface (Chinese / English / Spanish)

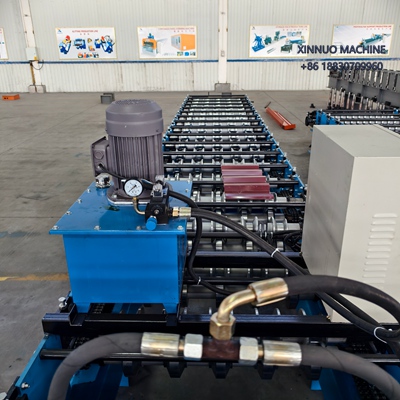

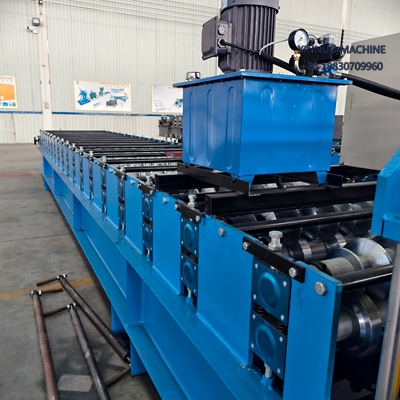

Total Power：Main motor 5.5KW–7.5KW + hydraulic station 3KW
Footprint Length 9–11 m, Width 1.3 m, Height 1.2 m
Machine Weight：Approx. 5–7 tons (depending on configuration)
3. Key Advantages
High Precision Profiling: Designed strictly according to the TR5 standard profile with excellent accuracy and dimensional consistency.
Fast Adjustment: PLC control allows quick change of lengths and batch settings, improving productivity.
Strong Structure: Reinforced base with heavy-duty welded steel frame for stable and continuous operation.
Durable Cutting Tools: Cr12MoV high-strength die steel ensures clean cuts with long lifespan.
Optional Add-ons: Available with auto stacker, hydraulic decoiler, servo punching system, coding device, etc.
Easy Operation: Fully automatic system with user-friendly interface and comprehensive fault alarm functions.
4. Application Fields
Roofing and wall panels for industrial buildings
Light steel garages and warehouses
Agricultural sheds and greenhouses
Prefabricated houses and exterior wall panels
Construction fencing and container panels
5. Export & Service Support
Complete export documentation and CE certification available
Electrical system supports multi-language operation (including Croatian and Spanish)
Custom profile services with 3D drawings and technical evaluation
Remote video installation support or engineer dispatch available
1-year warranty and lifetime free online technical support
6. Contact Us
If you are looking for a high-performance, structurally stable, and cost-effective machine for TR5 panel production, the Trapezoidal Panel Roll Forming Machine by Xinnuo Roll Forming Machine Co., Ltd is your ideal solution. Feel free to contact us for detailed quotations and customized solutions!
