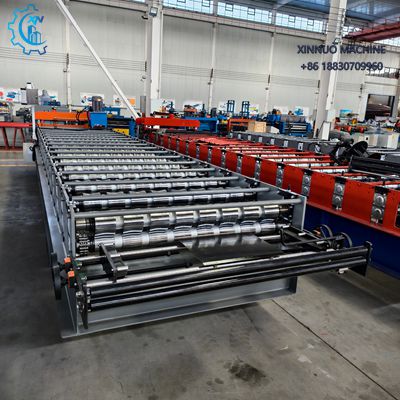

T101 / R101 Roof Sheet Roll Forming Machine
The T101 / R101 Roof Sheet Roll Forming Machine is a high-performance solution designed for producing precise and durable metal roofing sheets. Built with a reinforced machine structure and equipped with SAE 1045 steel rollers coated with 100% hard chrome, it ensures excellent forming accuracy, long-lasting durability, and a smooth, scratch-free sheet surface.
The machine includes a 5-ton manual decoiler for stable coil feeding, a heavy-duty ASA80 chain transmission system, and a fully automated touch-screen control panel that allows operators to set lengths, quantities, and production programs with ease. Its double-cylinder hydraulic cutting system features VC131 alloy steel blades, delivering clean and accurate cuts during continuous production.
Additional features include a trimming knife for sandwich panel production, a slitter knife for fast coil changing, and an edge-finishing device for uniform sheet borders. With a production speed of 8–15 m/min, it is ideal for roofing sheet manufacturers seeking reliability, efficiency, and consistent product quality.
This machine is engineered to produce one fixed profile—T101 or R101—ensuring maximum precision and excellent performance for your selected roofing sheet design.

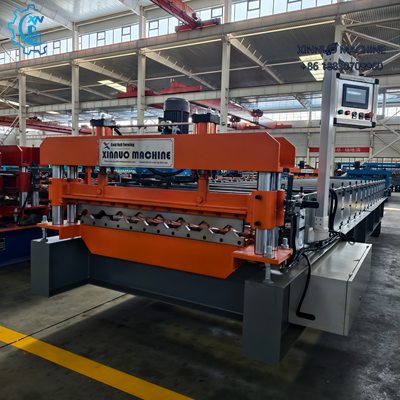

T101 / R101 Roof Sheet Roll Forming Machine
The T101 / R101 Roof Sheet Roll Forming Machine is specially designed for producing high-quality metal roofing panels in T101 or R101 profiles. Built with a durable structure and precision-engineered components, this machine ensures consistent forming accuracy, smooth surface quality, and high production efficiency for long-term industrial use.
Main Components
● 5 Ton Manual Decoiler
Adjustable for different coil inner diameters.
Manual operation ensures safe, stable, and controlled feeding of raw material.
Maximum capacity: 5 tons.

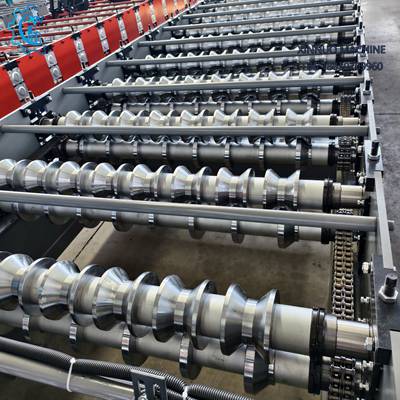

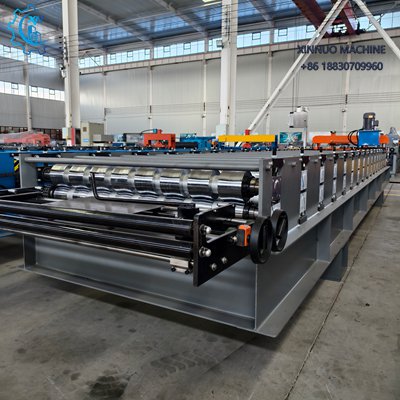

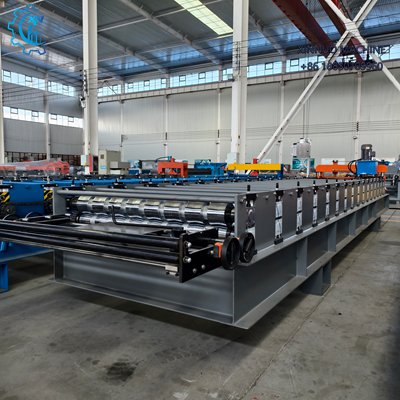

● Roll Forming Main Machine
Constructed with a reinforced welded steel structure for maximum strength and stability.
Equipped with SAE 1045 hardened steel rollers with 100% hard-chrome coating, ensuring:
-
Long service life
-
High wear resistance
-
Smooth forming finish
-
No scratches on sheet surface
● ASA80 Chain Transmission System
Heavy-duty industrial chain drive ensures stable, synchronized forming performance, ideal for continuous production.
● Fully Automatic Touch-Screen Control System
A modern and user-friendly control panel with a color touch screen allows the operator to:
-
Set different production lengths
-
Set quantities
-
Control automatic cutting
-
Store multiple job programs
-
Monitor production in real time
This system ensures fast, precise and efficient production with minimal human error.

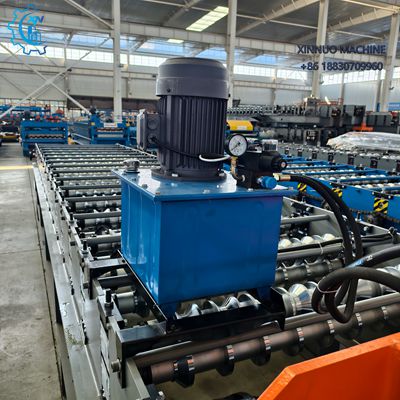

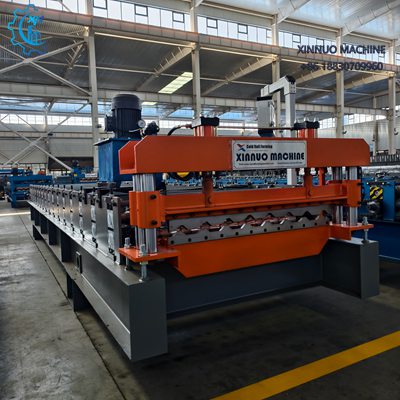

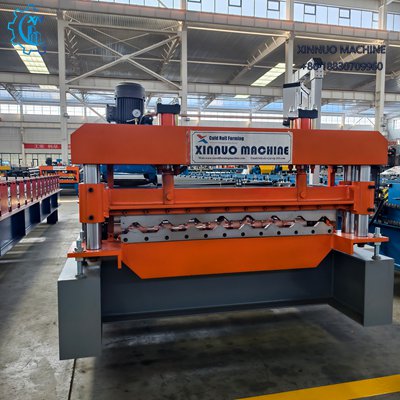

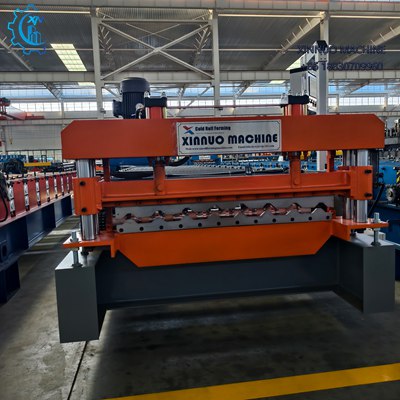

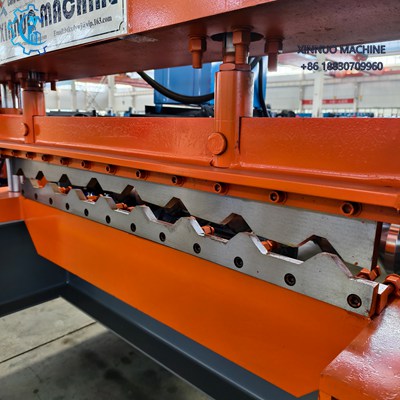

● Hydraulic Guillotine Cutting System
Equipped with a double-cylinder hydraulic cutting unit for stable and accurate cuts.
The cutting blade is made of VC131 high-strength alloy steel, heat-treated for durability and sharp cutting performance.
● Trimming Knife for Sandwich Panel Production
Special trimming blade for producing outer sheets of PU/PIR sandwich panels.
● Slitter Knife at Entry Feeding Table
Allows fast and safe sheet cutting for coil changes, improving productivity and operational convenience.
● Edge Finishing Device
Ensures clean, uniform, and precise edges on the finished roofing sheets.
● MAQPERF Quote Software
A dedicated software used for preparing quotations and internal production orders, improving management efficiency.
Machine Features
-
Specially designed for T101 / R101 roof sheet profiles
-
High forming precision, smooth surface without marks or scratches
-
Strong machine body suitable for long-term continuous operation
-
Fully automatic system reduces labor and increases accuracy
-
Easy operation, easy maintenance
-
Long service life and excellent cost-performance ratio
Technical Specifications
| Item | Specification |
|---|---|
| Machine Length | 12,000 mm |
| Machine Width | 1,600 mm |
| Machine Height | 1,400 mm |
| Production Speed | 8–15 m/min |
| Material Thickness | 0.35–0.70 mm |
| Coil Width | 1,200 mm |
| Profile Type | T101 / R101 (Single profile only) |
