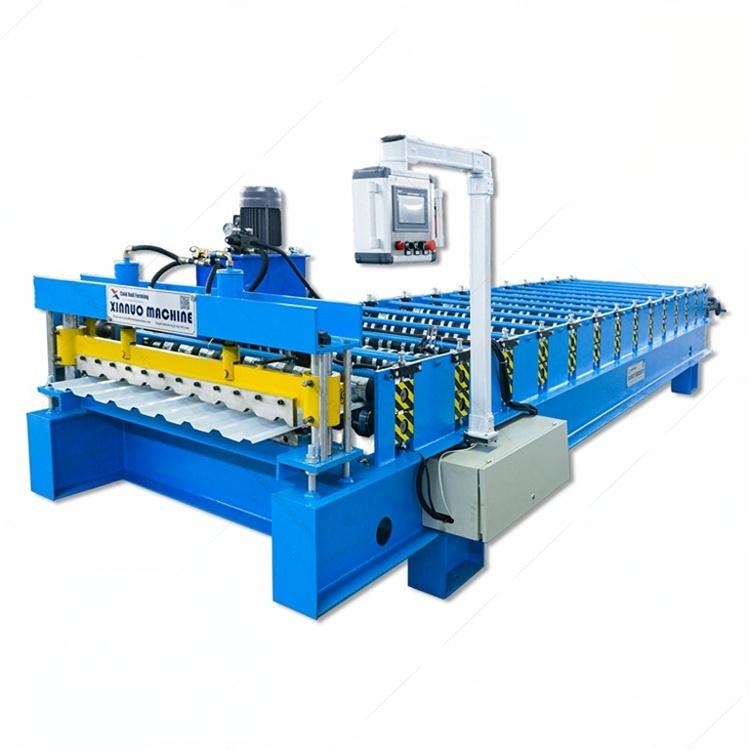

Roof sheet making machine
Product Overview:

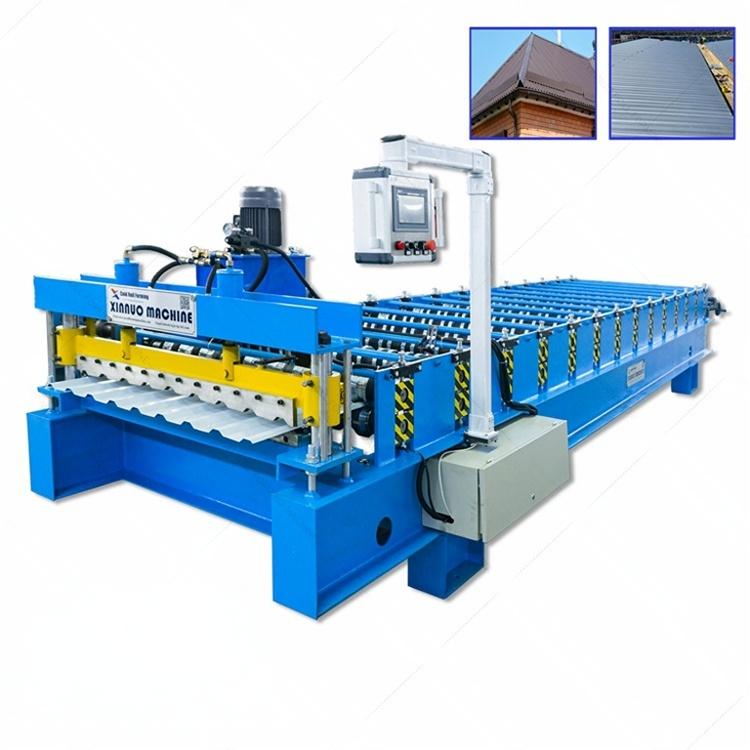

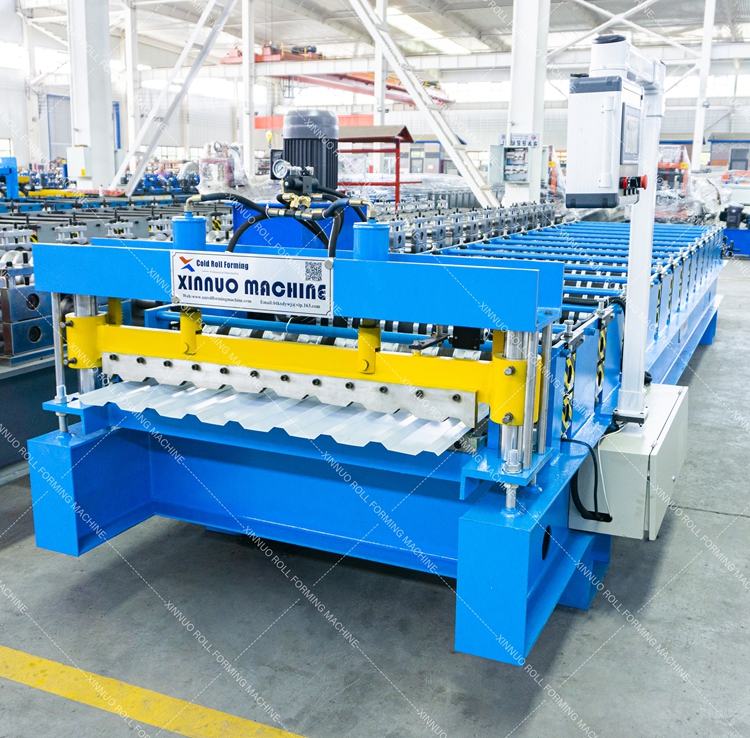

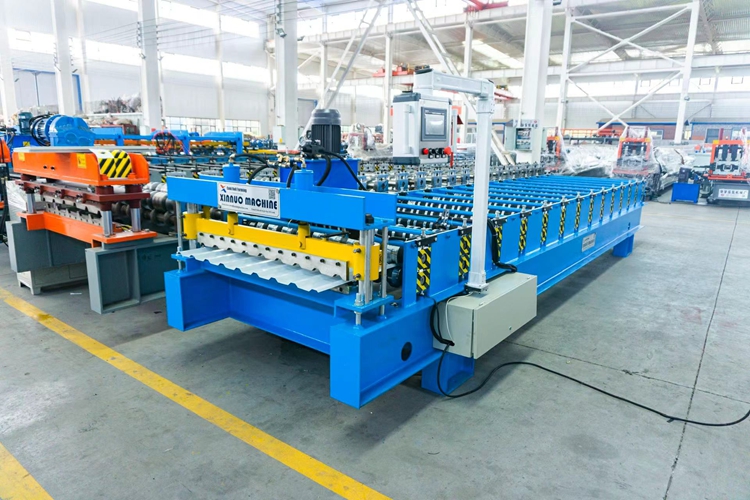

This machine is a cold roll forming equipment specially designed for manufacturing metal roofing sheets. It features a heavy-duty welded steel frame with high strength and excellent stability, equipped with a hydraulic guide-post shear system that offers high cutting precision and durability. The machine uses a chain drive transmission with a simple structure and easy maintenance, making it an ideal choice for medium to high-capacity production.
Technical Specifications:

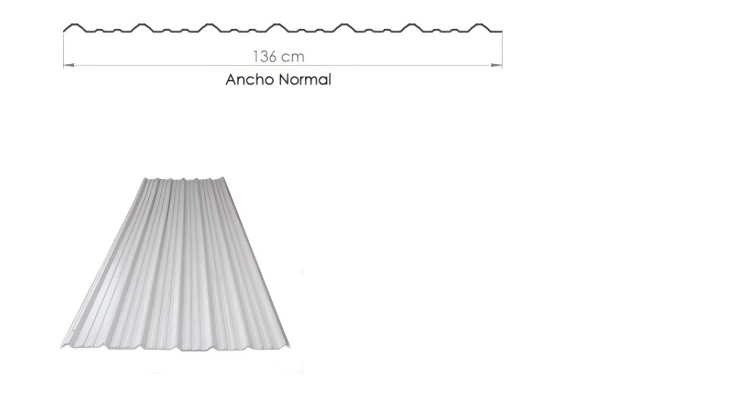

Applicable Profiles: Various trapezoidal corrugated sheets and roofing panels (customizable)
Raw Material Width: 1000–1250 mm (customized according to profile)
Raw Material Thickness: 0.3–0.8 mm (color-coated steel, galvanized steel, aluminum sheets, etc.)

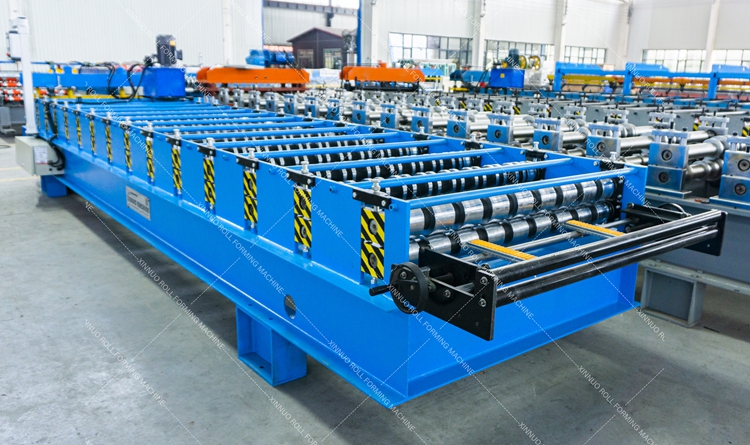

Forming Stations: 13–20 stations (depending on profile design)
Roller Material: GCr15 high-frequency quenched steel with hard chrome plating
Frame Structure: Heavy-duty welded steel frame with heat treatment
Drive Method: 1.0-inch chain drive with gear reducer
Cutting Method: Hydraulic guide-post shear, stable operation, precise cutting
Control System: PLC automatic control (Siemens or Mitsubishi optional) with touchscreen operation
Production Speed: 10–15 meters per minute (higher speed models customizable)
Operating Languages: Chinese/English/Spanish (multi-language systems customizable)
Optional Supporting Equipment:
To meet various production capacity and automation needs, the production line supports the following optional equipment:
Manual Decoiler: Simple and practical, suitable for customers with limited budgets or startup production
Motorized Decoiler: Motor-driven feeding to improve production efficiency
Fully Automatic Hydraulic Decoiler (without trolley): Automatic hydraulic expansion and braking, enhancing automation level
Fully Automatic Hydraulic Decoiler (with trolley): Includes feeding trolley for safer and easier coil handling
Simple Receiving Rack: Manual receiving, suitable for small batch production
Motorized Receiving Rack: Automated product receiving to improve finished product handling efficiency
Fully Automatic Stacking Machine: Automatically stacks finished products, ideal for large-scale continuous production
Equipment Advantages:
Stable and Durable Structure: Heavy-duty welded frame resistant to deformation and vibration
Precise and Long-lasting Shearing: Guide-post shear system requires low maintenance and offers high precision
Easy Operation with Intelligent Control: PLC control supports length setting, automatic counting, and automatic cutting
Strong Expandability: Can be upgraded to a fully automated unmanned line, reducing labor costs
Multi-language Interface Support: Especially suitable for export markets
Versatile Use: Supports customized profile molds to adapt to various roofing panel types
Application Areas:
This forming machine is widely used in various metal structure construction projects, including:
Industrial factory roofs and walls
Warehouses and logistics centers
Commercial building roofs
Temporary buildings
Agricultural sheds and simple residential housing
