Roofing Sheets Machine for Lámina Acanalada R-101
Product Introduction:

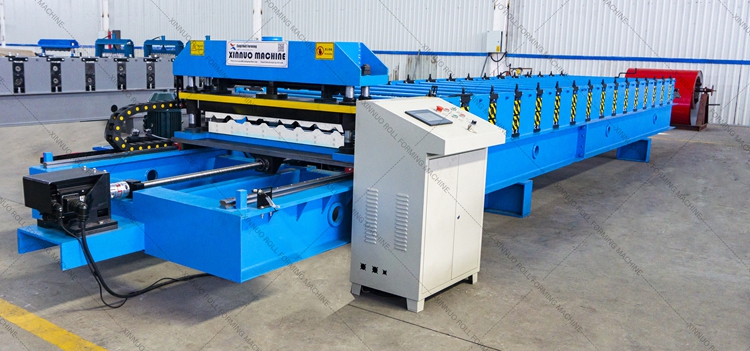

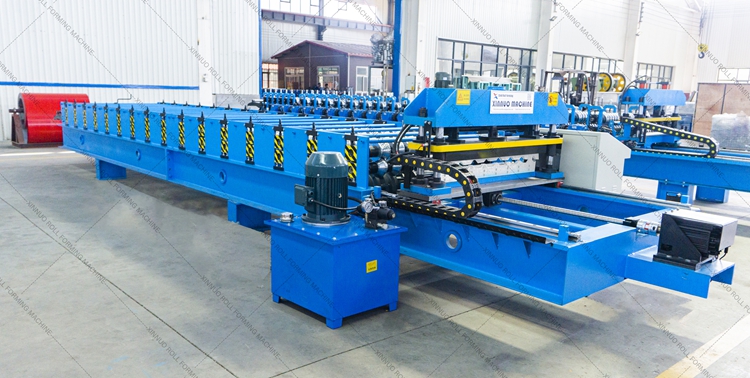

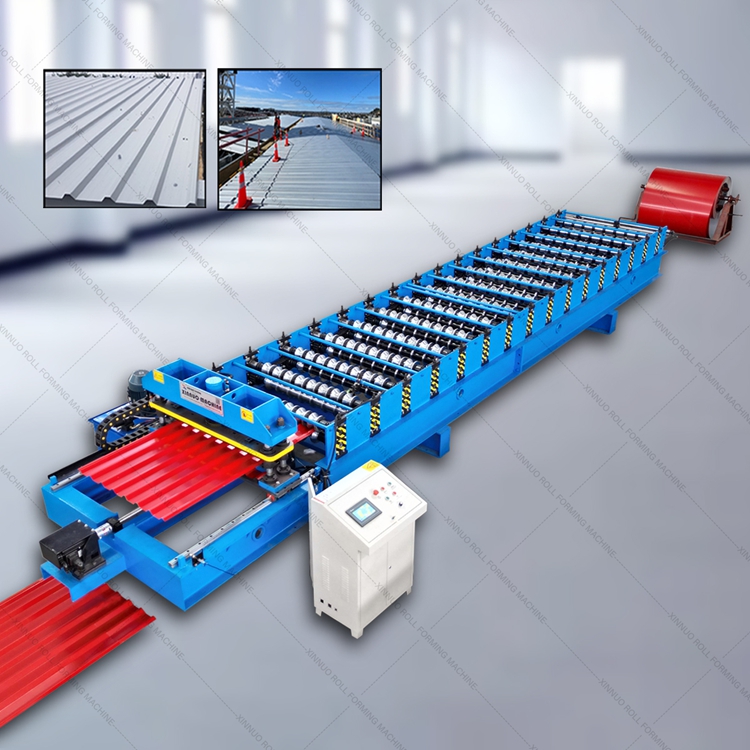

This machine is a high-performance roll forming machine specially designed for producing Lámina Acanalada R-101 (R101 trapezoidal corrugated sheets). It features a heavy-duty welded steel frame, ensuring durability and stability. Equipped with a servo tracking shear system and chain drive structure, it achieves high-speed, high-precision automated continuous production. It is widely used in roofing materials, metal building structures, and related industries.
Main Technical Parameters:

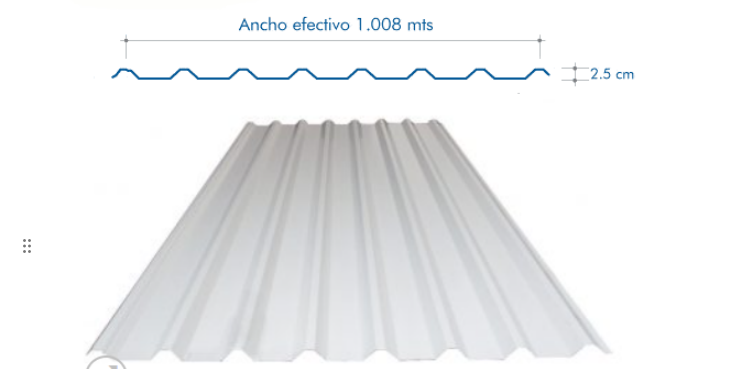

Profile Model：Lámina Acanalada R-101 (effective coverage approx. 836–850 mm)
Raw Material Width：1000–1220 mm (customizable)
Raw Material Thickness：0.3–0.8 mm galvanized steel, color-coated steel

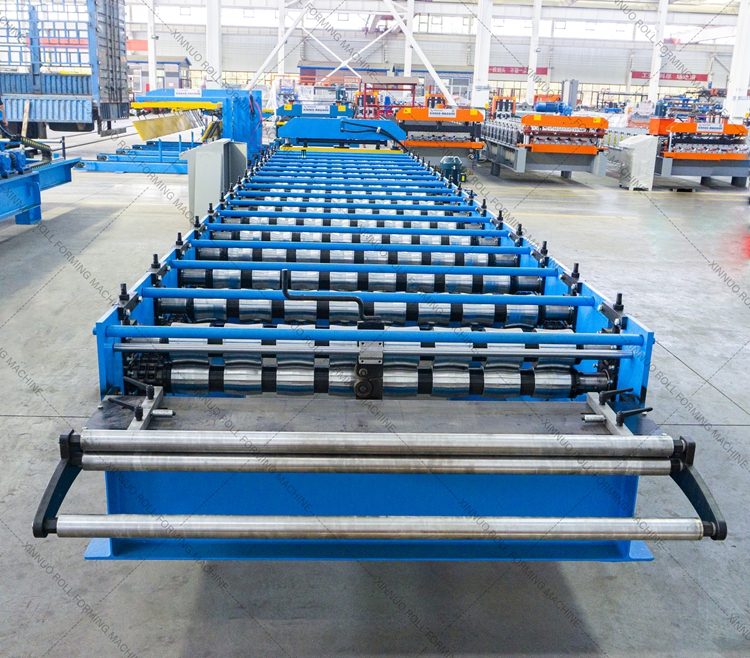

Forming Stations：16–18 stations (based on profile design)
Roller Material：GCr15 high-chromium steel, precision machined and high-frequency quenched
Frame Structure：Heavy-duty welded steel frame (stress relieved by heat treatment)
Transmission：Chain drive (gear drive optional)
Cutting Method：Servo tracking shear system (automatic tracking for higher accuracy)
Control System：PLC control (Siemens/Mitsubishi), with touchscreen and servo system
Working Speed：10–25 meters per minute (adjustable per customer requirements)
Operating Languages：Chinese/English/Spanish selectable
Optional Supporting Equipment:
Manual Decoiler：3–5 tons, suitable for small batch production
Motorized Decoiler：Motor-driven, suitable for medium and small capacity
Fully Automatic Hydraulic Decoiler (without trolley)：Hydraulic expansion and braking system for efficient coil changes
Fully Automatic Hydraulic Decoiler (with trolley)：Includes feeding trolley to improve automation and safety
Simple Receiving Rack：Simple structure, suitable for manual receiving
Motorized Receiving Rack：Suitable for continuous production, improves receiving efficiency
Fully Automatic Stacking Machine：Enables fully unmanned line operation, reduces labor costs
Equipment Advantages:
Profile Precision Match: Specially designed for R-101 profile, producing consistent height and clear corrugations;
Robust and Stable Structure: Heavy-duty welded steel frame ensures smooth operation and long service life;
Servo Shearing System: Automatic tracking cut enhances cutting accuracy and reduces waste;
High Automation Level: Compatible with fully automatic decoiling, receiving, and stacking for one-key continuous production;
Multilingual Support: Operation systems support Spanish and English for easier use by export customers;
Flexible Configuration: Supporting solutions can be freely combined based on customer budget and production capacity.
Application Areas:
Suitable for mass production of Lámina Acanalada R-101 roofing sheets, widely used in:
Industrial factories
Commercial warehouses
Roof construction
Agricultural sheds
Temporary buildings and other metal structure projects
