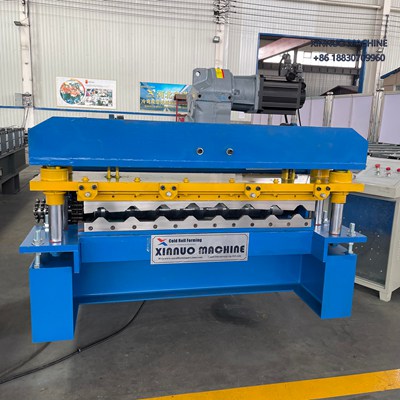

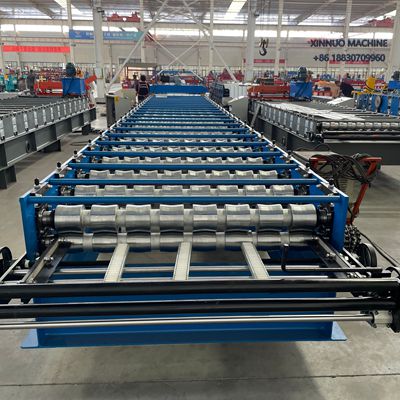

Metal Roof Making Machine for R-101 Roofing Panels

Metal Roof Making Machine for R-101 Roofing Panels

Product Attributes :

Esta máquina formadora de láminas para techo R-101 está especialmente diseñada para el mercado latinoamericano. Utiliza una estructura soldada de placas centrales, con alta rigidez y funcionamiento estable, ideal para producción continua a largo plazo. Integra alimentación automática, conformado por rodillos y corte servo controlado, con una velocidad máxima de 25 m/min y alta precisión de perfil. Es apta para acero galvanizado, acero prepintado y aluminio, con espesores ajustables de 0,3 a 0,8 mm. El sistema de transmisión por cadena es duradero y de bajo mantenimiento. Tanto el motor principal como el sistema de corte usan servomotores, garantizando longitudes exactas y mínimo desperdicio. El control PLC con pantalla táctil facilita la operación. Los paneles finales ofrecen alta resistencia y excelente impermeabilidad, y se brinda soporte posventa completo con asistencia técnica en línea de por vida.

Product Description

Metal Roof Making Machine for R-101 Roofing Panels

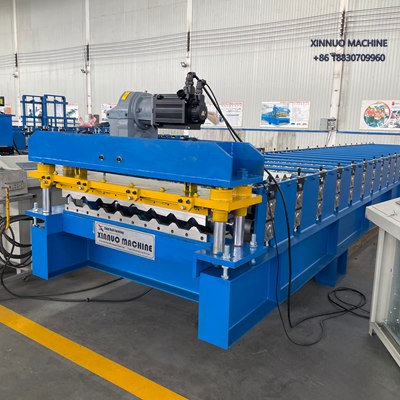

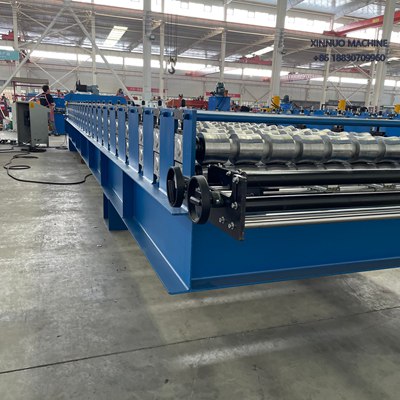

1. Machine Structure

The machine features a middle-plate welded frame, ensuring superior rigidity and long-term stability during continuous production.
It is specially designed to manufacture R-101 metal roofing panels for the Latin American market, providing high precision and consistent quality.

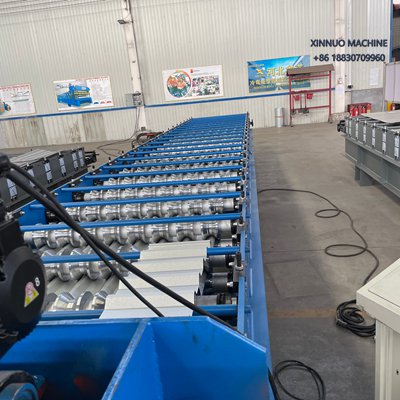

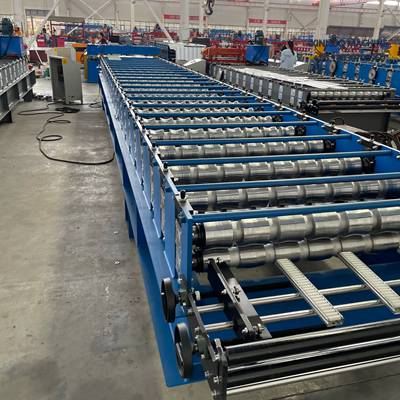

2. Function and Working Principle

This equipment automatically feeds, rolls, and cuts metal coils to produce finished roofing sheets.
It is capable of high-speed production, reaching up to 25 meters per minute, while maintaining accurate profile shapes.

3. Raw Material Compatibility

Suitable for processing galvanized steel, pre-painted steel (PPGI), and aluminum coils.
Standard sheet thickness ranges from 0.3 mm to 0.8 mm, and coil width is adjustable to meet diverse roofing requirements.

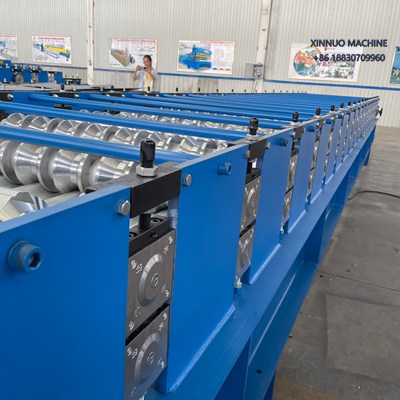

4. Transmission System

Equipped with a chain-driven transmission, the machine ensures stable power transfer and smooth operation under high-speed conditions.
This simple yet durable design reduces maintenance costs and downtime.

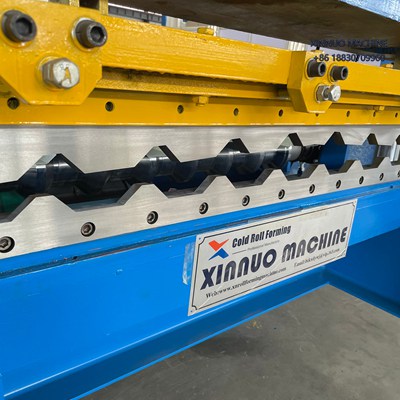

5. Servo Motor & Cutting System

Both the main drive and the cutting system are powered by servo motors, allowing precise control over sheet length and high-speed cutting.
This setup ensures minimal material waste and accurate output, even at maximum production speed.

6. Control System & Operation

The machine uses an advanced PLC control system with a touchscreen interface for easy operation.
Operators can adjust production parameters, switch between jobs, and monitor performance in real-time, enhancing efficiency and safety.

7. Applications

Ideal for producing R-101 metal roofing panels used in residential buildings, warehouses, factories, and commercial facilities across Latin America.

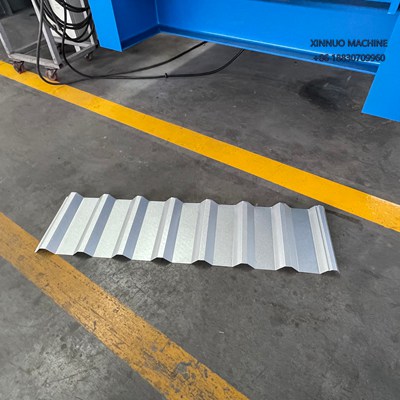

The finished panels offer excellent strength, water resistance, and aesthetic appeal.

8. Performance Advantages & After-Sales

High-speed production: up to 25 m/min.
Stable middle-plate frame ensures durability and long service life.
Chain drive and servo motor system provide precision and efficiency.
Minimal maintenance due to robust design.
Comprehensive after-sales support, including installation guidance, spare parts supply, and lifetime online technical assistance.
