TP 25/1020 roof sheet making machine

Product Attributes :

The TP 25/1020 Roof Sheet Making Machine is a state-of-the-art roll forming system designed for efficient, high-quality metal roof sheet production. Equipped with a motorized 12-ton decoiler, robust SAE 1045 steel forming rolls with 100% hard chrome coating, hydraulic guillotine, trim and slitter blades, and a fully automated color touch-screen control system, it ensures precise, fast, and continuous operation. Its ASA80 chain drive provides stable transmission, while the edge finishing system guarantees professional sheet edges. Capable of handling sheet thickness from 0.35 to 0.70 mm and width up to 1,200 mm at speeds of 10–18 m/min, this machine is ideal for specialized production lines seeking durability, efficiency, and superior sheet finish.

Product Description

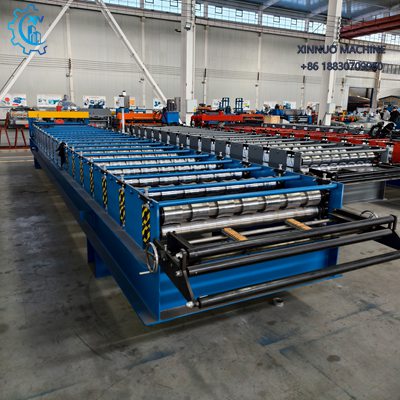

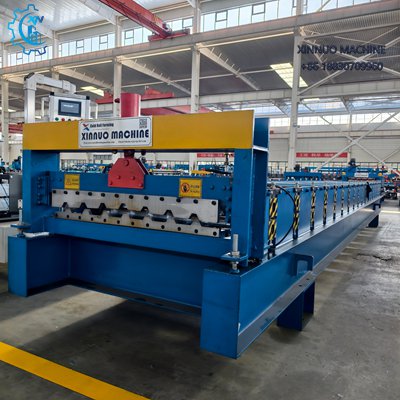

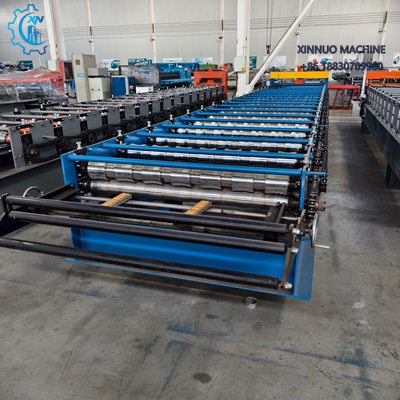

TP 25/1020 Roof Sheet Making Machine

The TP 25/1020 Roof Sheet Making Machine is a high-performance roll forming machine designed for producing premium metal roof sheets with precision and efficiency. Built for manufacturers who require durability, productivity, and consistent quality.

Features & Equipment Included:

12.0 Ton Motorized Decoiler: Fully automatic with adjustable settings for various coil diameters, ensuring continuous production.
Robust Machine Frame TP 25/1020: Solid steel construction for stability and long-term durability.

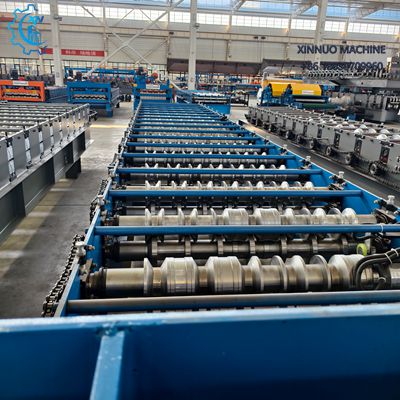

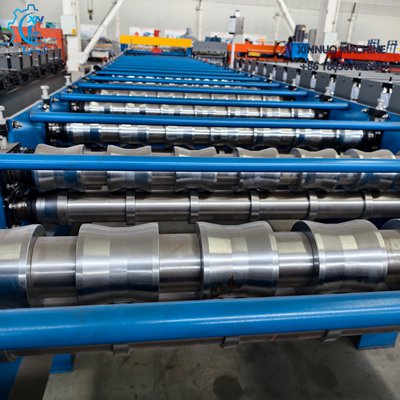

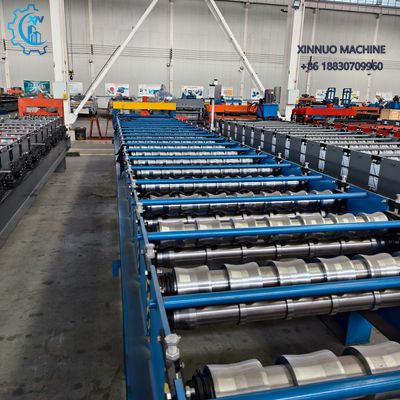

High-Quality Forming Rolls: Made of SAE 1045 steel with 100% hard chrome coating for long life and superior sheet finish.
Fully Automated Control System: Color touch-screen interface allows quick programming of sizes and production quantities.

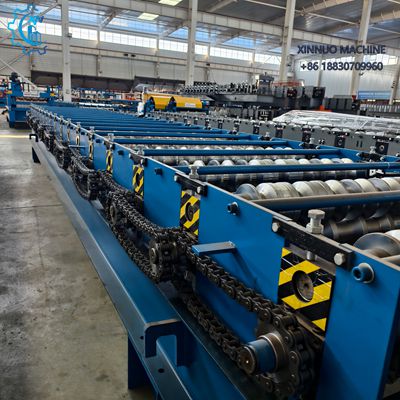

ASA80 Chain Drive Transmission: Reliable, efficient, and stable operation.
Hydraulic Guillotine with Dual Cylinders: Accurate automatic sheet cutting.
VC131 Heat-Treated Steel Cutting Blade: High durability for precise cuts.
Trim Blade: For sandwich sheet production with perfect edge trimming.
Slitter Blade at Entry Table: Enables quick and safe coil cutting for easy replacement.
Edge Finishing System: Ensures smooth and professional sheet edges.
TP25/1020 QUOTE Software: Simplifies production planning and internal budgeting.

Key Advantages:

High Productivity: Production speed ranges from 10 to 18 meters per minute.
Versatility: Supports sheet thickness from 0.35 to 0.70 mm and width up to 1,200 mm.
User-Friendly Operation: Automated system reduces manual labor and simplifies operation.
Durable & Long-Lasting: Sturdy frame and premium rolls enable continuous, reliable performance.
Professional Finish: Produces sheets without scratches, dents, or imperfections.

Technical Specifications:

Installed Length: 12,500 mm
Width: 1,650 mm
Height: 1,450 mm
Production Speed: 10–18 m/min
Sheet Thickness: 0.35–0.70 mm
Sheet Width: 1,200 mm
Note: This machine produces a single profile type TP 25/1020, ideal for specialized roof sheet production lines.
