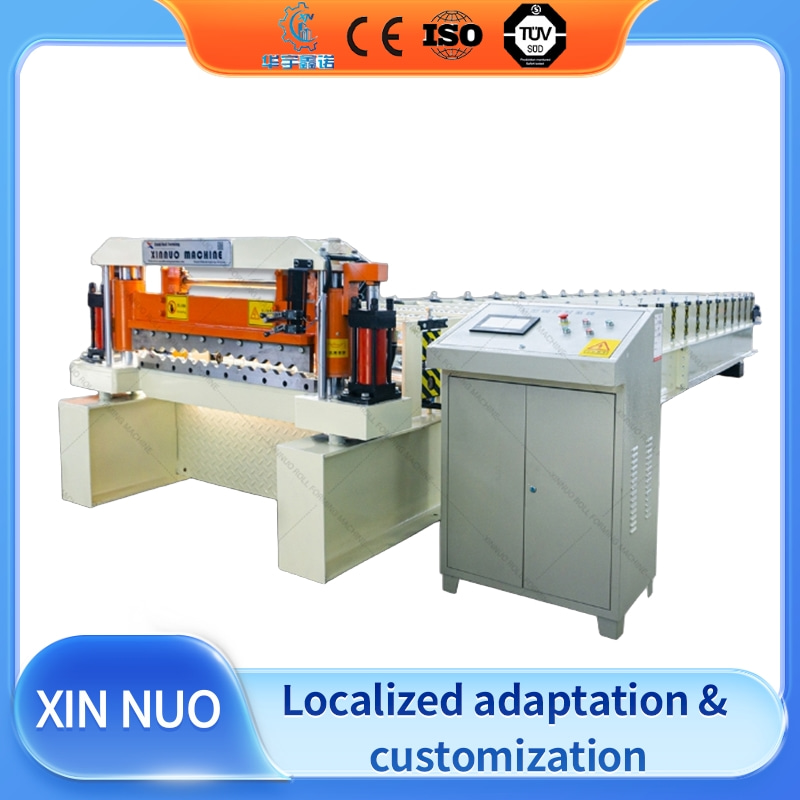

Corrugated steel panel roll forming machine

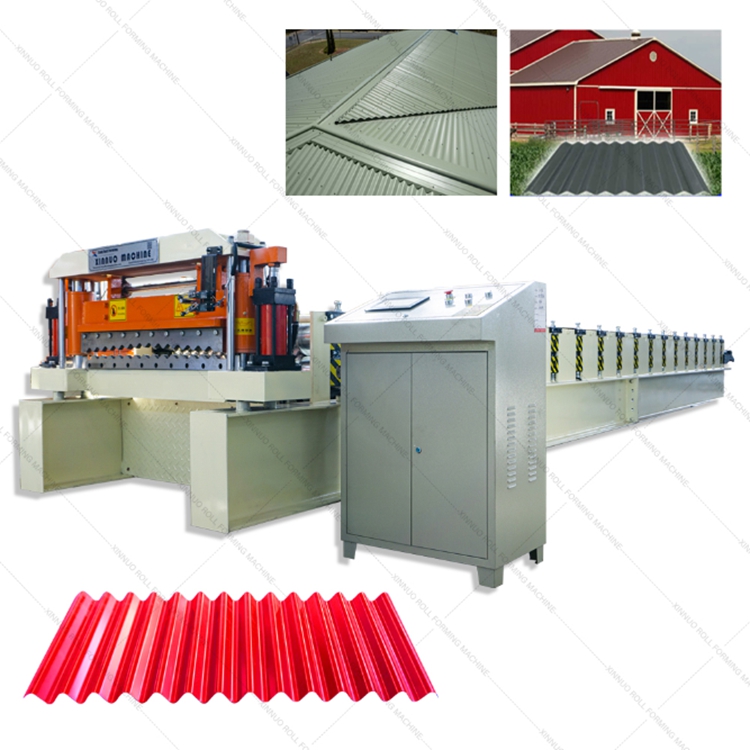

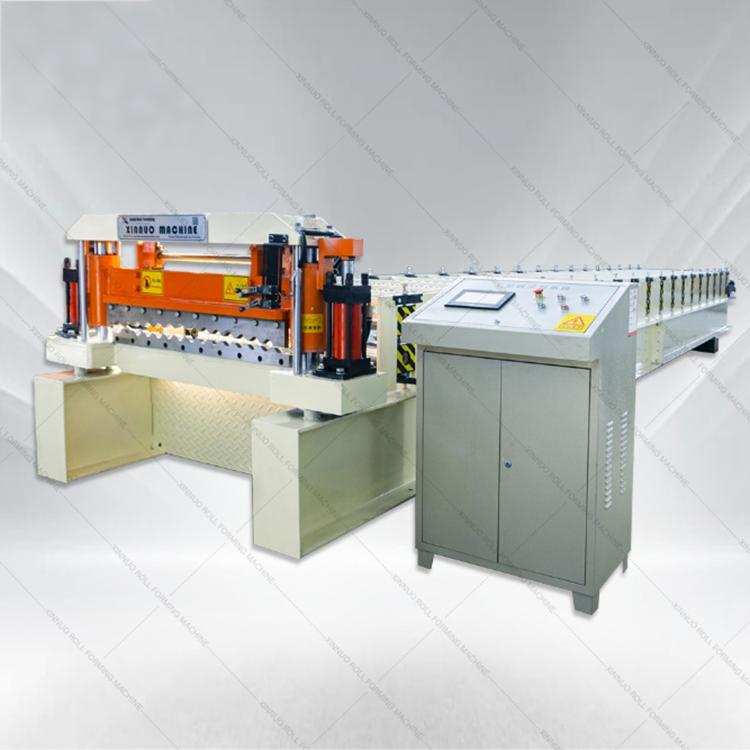

Lámina O-30 Corrugated Steel Panel Roll Forming Machine
— Chain Drive, Guide Post Shearing, Heavy-Duty Frame, Custom Developed for O-30 Corrugated Panels

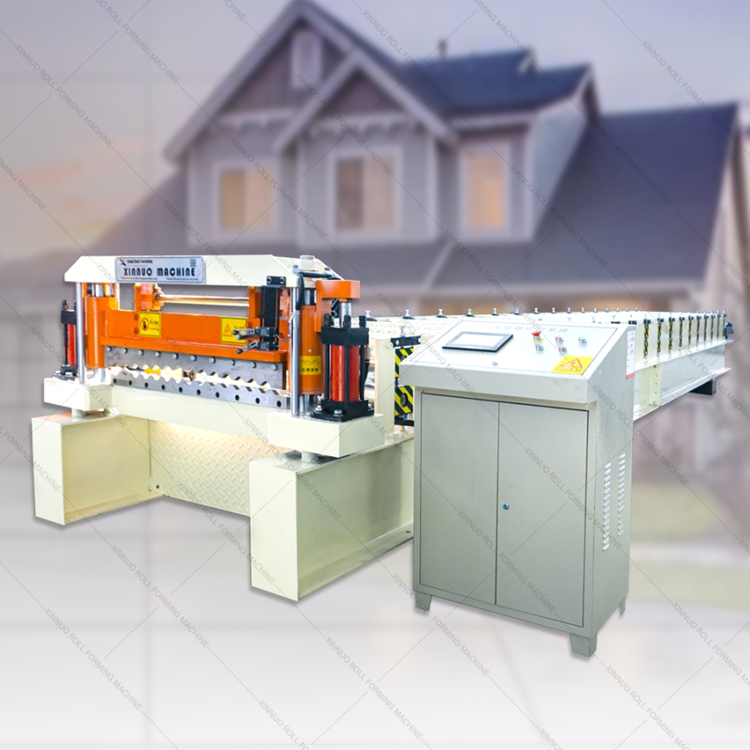

Xinnuo Roll Forming Machine Co., Ltd. has meticulously developed this specialized roll forming machine for Lámina O-30 corrugated panels, designed for high-volume production of precision O-30 profile metal roofing sheets. The equipment features chain drive transmission, guide post shear structure, and a thickened heavy-duty welded steel frame. The overall design is stable, durable, easy to operate, and cost-effective, making it an ideal choice for small and medium-sized roofing panel processing factories.
Main Technical Parameters (Customizable)

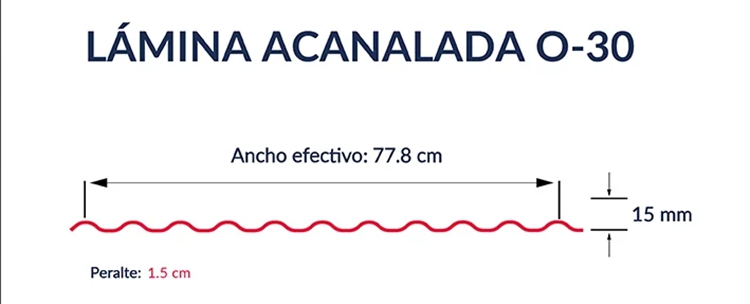

Applicable Profile: Lámina O-30 corrugated panel (low-profile wave, common in Latin American markets)
Material Types: Color-coated steel, galvanized steel, galvalume steel, etc.
Material Thickness: 0.3 mm – 0.8 mm
Raw Material Width: 914 mm / 1000 mm / 1220 mm (customizable)
Effective Finished Width: Approx. 840 mm (per drawings)

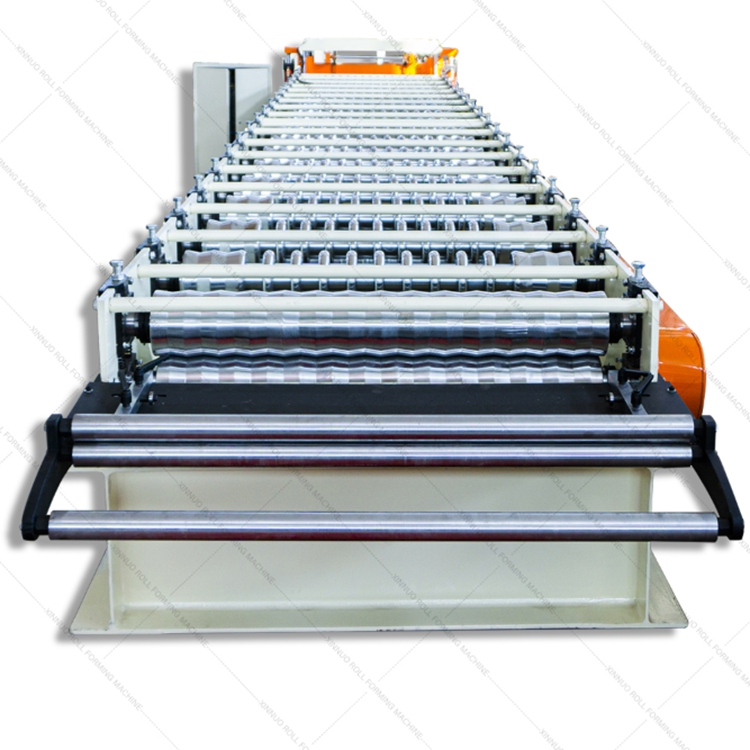

Forming Stations: 16–22 stations (based on specific profile design)
Forming Structure: Heavy-duty frame with 14–20 mm thick welded steel plates
Drive Method: Chain drive (stable, durable, low maintenance)

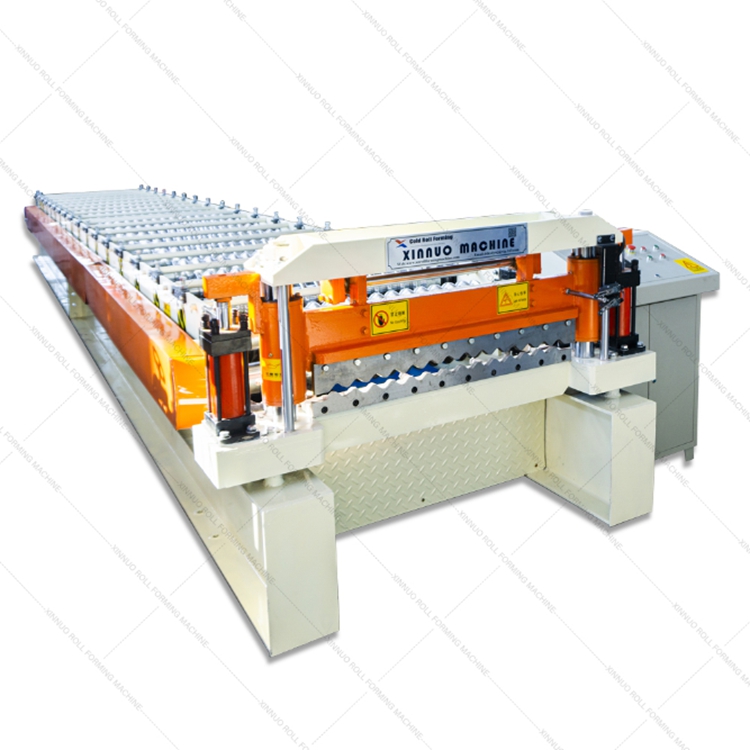

Shearing Method: Hydraulic shear with guide post, stable cutting, long service life
Cutter Material: Cr12 tool steel, heat-treated and quenched
Main Motor Power: 5.5–7.5 KW (depending on profile)
Hydraulic Power Unit: 3 KW
Forming Speed: 8–15 meters per minute (depending on material thickness and structure)

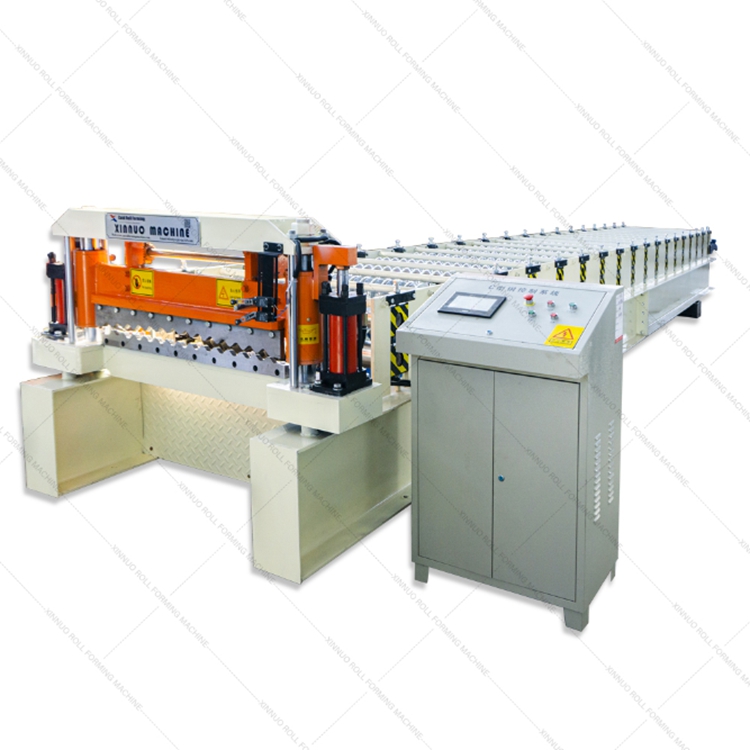

Control System: PLC automatic control with touchscreen interface (Chinese/English/Spanish optional)

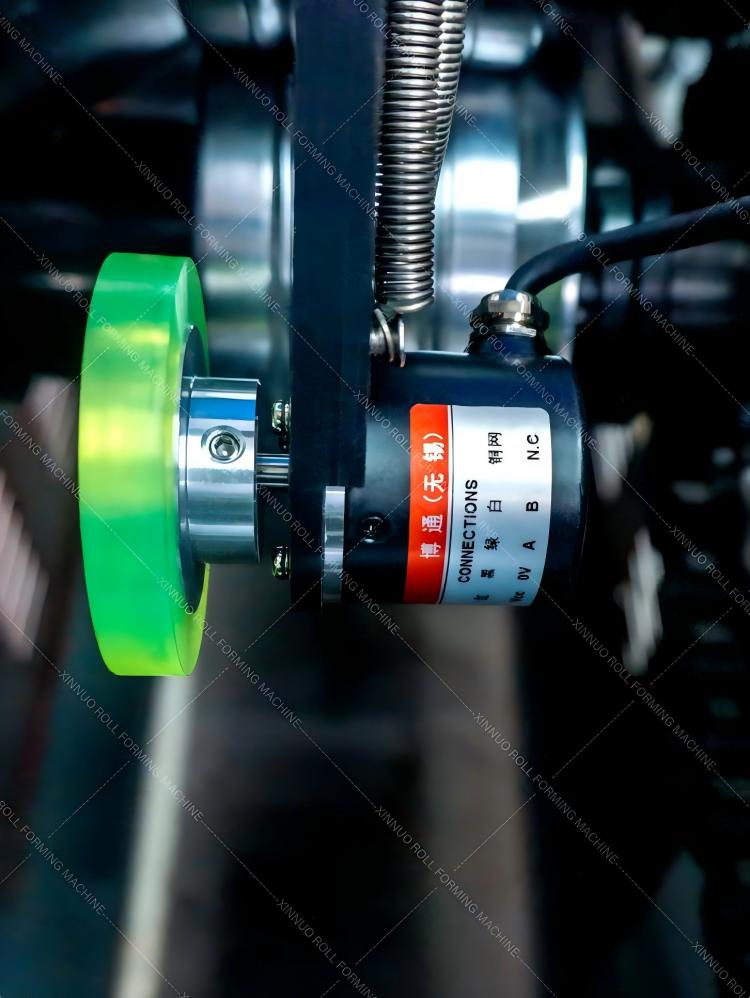

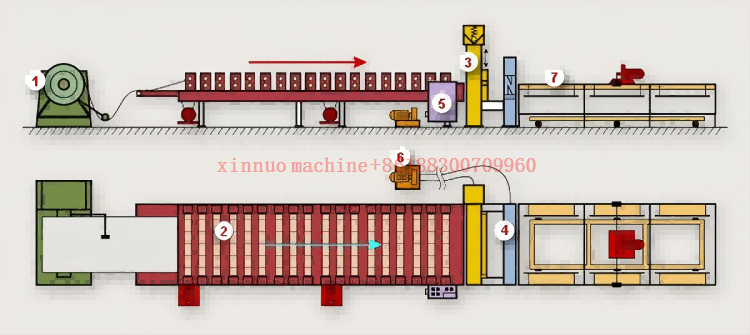

Optional Supporting Equipment (Configured as per customer requirements)
Manual Decoiler: Manual expansion and tension, economical and practical for budget-limited scenarios
Motorized Decoiler: Motor-driven feeding for improved loading efficiency
Hydraulic Decoiler (without trolley): Automatic expansion plus hydraulic lifting, suitable for medium-level automation lines
Hydraulic Decoiler (with trolley): Includes automatic feeding trolley for coil handling automation
Simple Receiving Rack: Basic structure, suitable for manual receiving
Motorized Receiving Rack: Automatic finished product conveying to improve production line efficiency
Fully Automatic Stacking Machine: Automatically organizes and stacks finished products, reducing labor and enhancing line automation
Equipment Highlights
Targeted Design: Developed based on common O-30 profile drawings in Mexico and Latin America
Robust Structure: Heavy-duty welded frame for stable operation without deformation
Mature Shearing System: Guide post hydraulic shear for neat cuts and reliable performance
Easy Operation: Equipped with PLC control system supporting multilingual user interface
Low Maintenance Cost: Chain drive is simple and easy to maintain, ideal for continuous use in small to medium factories
Flexible Automation Upgrade: Supports future additions such as stacking systems, automatic packing modules, etc.
Export Countries Reference
This machine has been widely exported to:
Mexico, Colombia, Ecuador, Peru, Bolivia, Guatemala, and others, with over 200 production lines successfully operating and receiving high praise from end users.
