Corrugated metal roofing machine

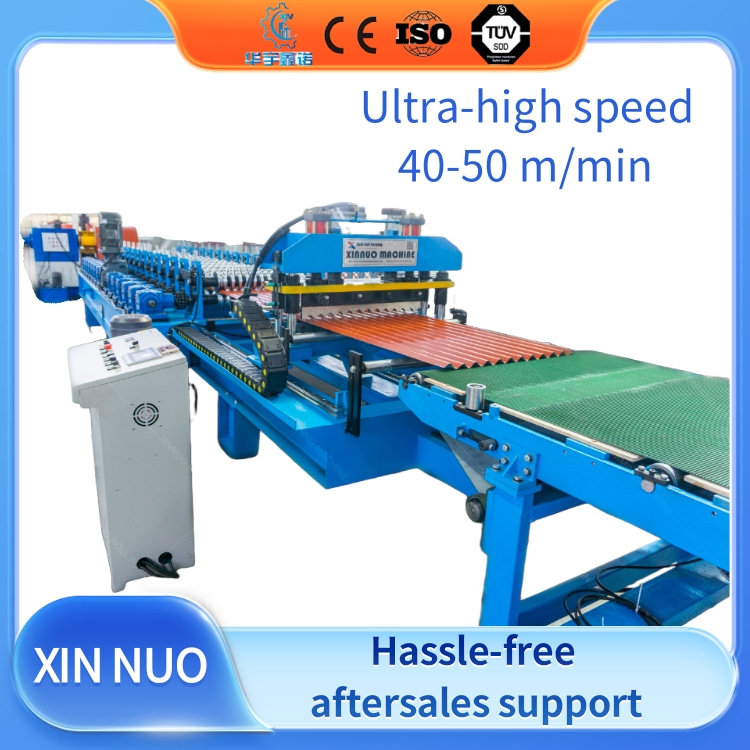

Lámina O-100 Corrugated Metal Roofing Machine
— Gearbox Drive, Tracking Shear, Gantry Structure, Professionally Customized Solution for Lámina O-100 Corrugated Panels

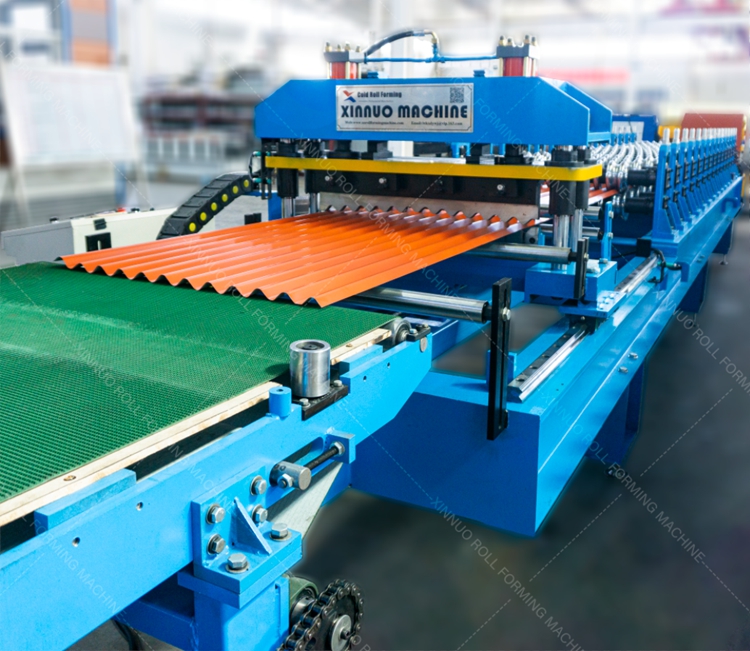

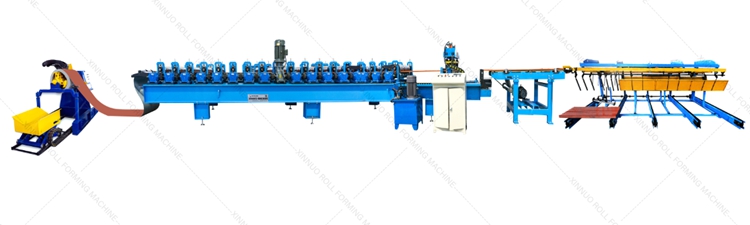

Xinnuo Roll Forming Machine Co., Ltd., with over 30 years of experience in cold roll forming equipment manufacturing, has launched a high-performance fully automatic forming production line specifically developed for Lámina O-100 corrugated metal roofing panels. This production line adopts a gearbox drive system, equipped with advanced servo tracking shear technology and a high-strength gantry-style structure, ensuring high forming accuracy, fast cutting speed, and stable line operation. It is especially suitable for efficient mass production.
Main Technical Parameters (customizable based on requirements):

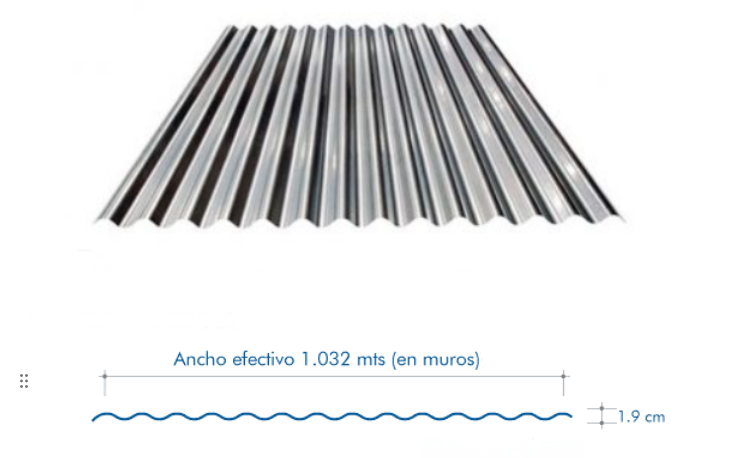

Profile Name: Lámina O-100 Corrugated Panel (high-profile wave)
Applicable Materials: Galvanized steel, color-coated steel, galvalume steel, etc.
Material Thickness: 0.3 mm – 0.8 mm (commonly 0.4–0.8 mm)
Raw Material Width (Uncoiled): 1000 – 1250 mm
Effective Finished Width: Designed according to specific profile drawings (e.g., 950 mm)

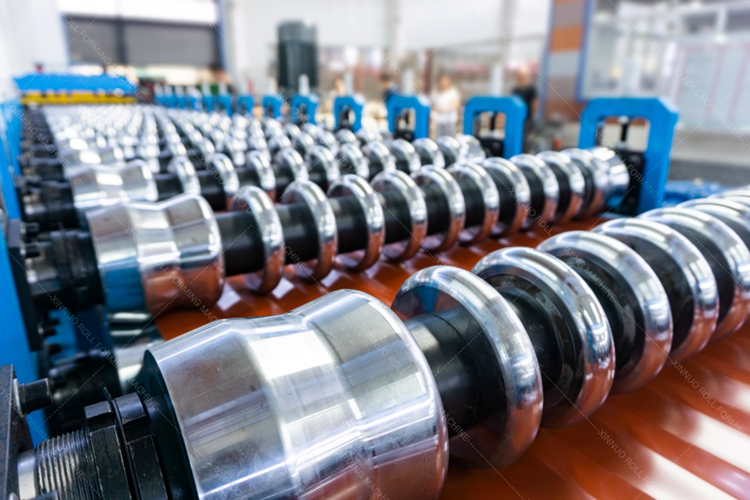

Forming Stations: 18 – 24 stations (depending on profile structure)

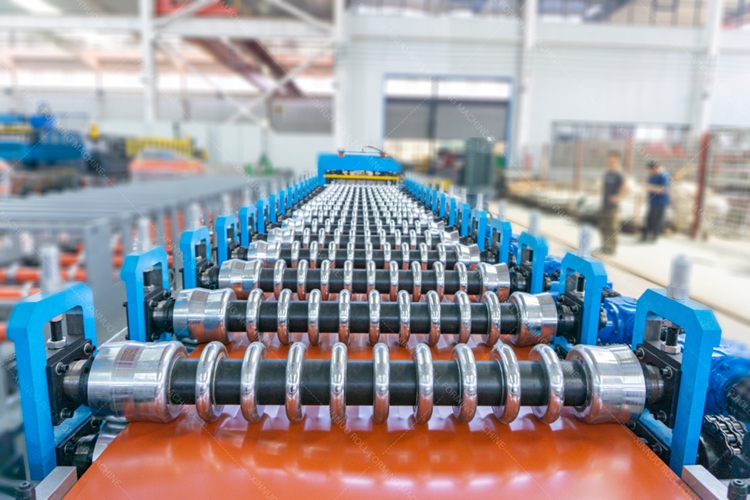

Forming Structure: Gantry-style structure (thickened steel columns, high strength and stability)

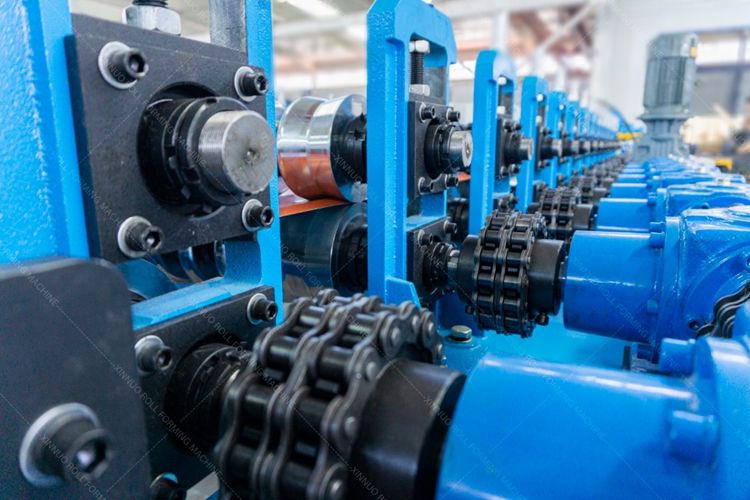

Drive Method: Gearbox drive, precise and shock-free transmission
Forming Speed: 15 – 25 meters per minute (depending on profile and thickness)

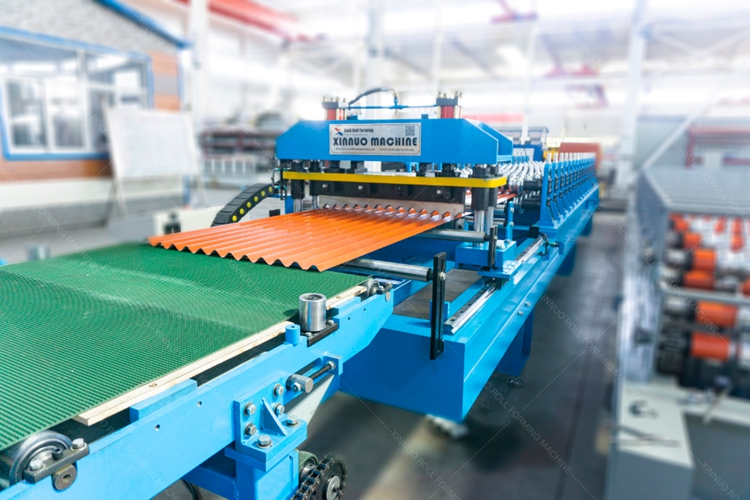

Shearing System: Servo tracking shear with automatic positioning and fast cutting

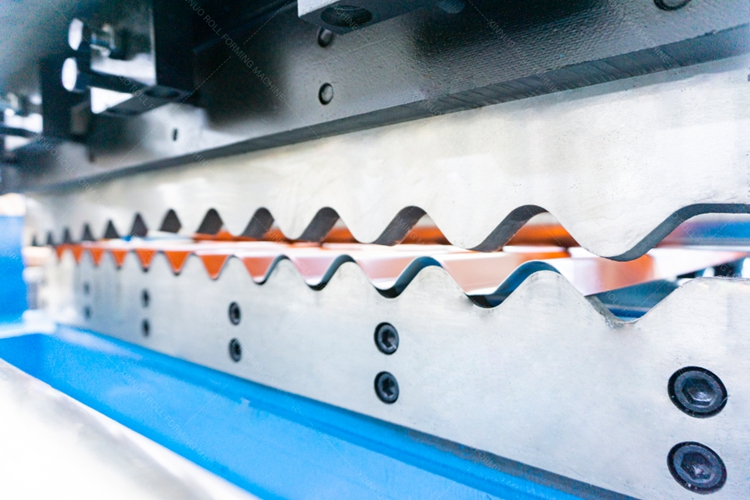

Cutter Material: Cr12Mov tool steel, heat treated for long service life

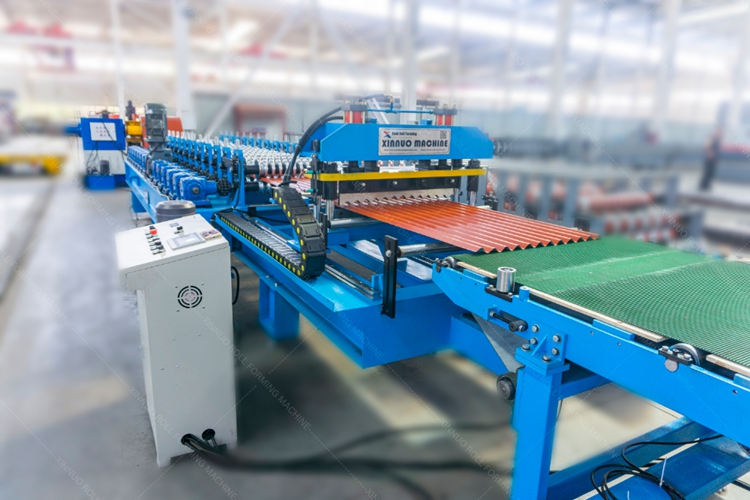

Control System: Fully automatic PLC control (Siemens or Mitsubishi optional) with touchscreen interface
Operating Languages: Multilingual system supporting Chinese, English, and Spanish with user-friendly interface
Electrical Components: International brands such as Schneider, Omron, etc.
Optional Supporting Equipment (flexibly configurable per customer needs)：
Manual Decoiler: Low cost, suitable for small batch or budget-conscious customers
Motorized Decoiler: Motor-driven to improve coil feeding efficiency
Fully Automatic Hydraulic Decoiler (without trolley): Hydraulic expansion and lifting, suitable for medium-sized factories
Fully Automatic Hydraulic Decoiler (with trolley): Automatic coil feeding with movable trolley to save labor and improve efficiency
Simple Receiving Rack: Low-cost, suitable for general finished product receiving
Motorized Receiving Rack: Motor-driven receiving rack to facilitate stacking

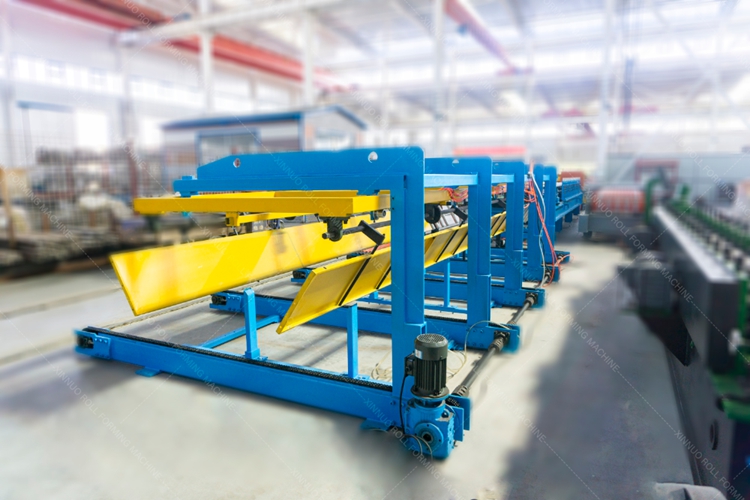

Fully Automatic Stacking System: Automatically organizes and stacks finished products, greatly enhancing packaging efficiency and automation level
Equipment Highlights:
Custom Designed: Precisely designed according to customer-provided O-100 drawings to ensure consistent wave dimensions and full forming effect
Servo Drive System: More precise, smoother operation, and quieter than traditional chain drives
Servo Tracking Shear: Allows non-stop cutting to increase capacity, ideal for high-speed continuous production
Gantry Frame Structure: Built with high-strength welded steel plates, making the machine stable, durable, and long-lasting
User-Friendly Interface: Multilingual touchscreen control for simple operation and easy maintenance
Remote Support and Training: Provides video tutorials, online debugging support, and after-sales training
Export Case References:
This model has been successfully exported to Mexico, Peru, Colombia, Argentina, and other Latin American countries, receiving high praise from customers. We can customize voltage, motor standards, operating languages, and other specifications according to different countries and regional technical standards.
