— Gearbox Drive, Guide Post Shearing, Gantry-Style Structure, Custom Tailored for O-30 Corrugated Panels
Xinnuo Roll Forming Machine Co., Ltd., leveraging years of experience in cold roll forming equipment development and manufacturing, presents the dedicated Lámina O-30 corrugated panel roll forming machine. This machine features a highly efficient and stable gearbox drive system combined with guide post hydraulic shearing and a gantry-style reinforced frame, ensuring stable operation and high forming precision. It meets the production needs of both small-to-medium and large-scale batch manufacturing.
Main Technical Parameters (Adjustable per customer requirements):

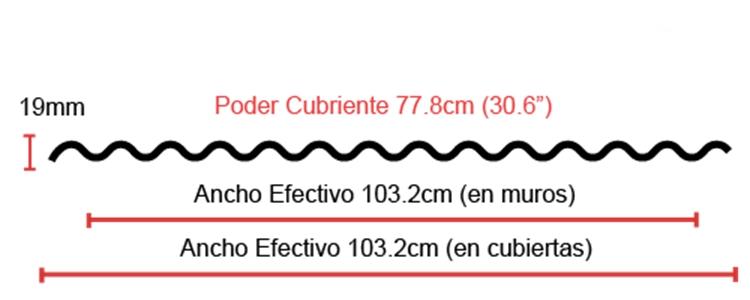

Applicable Profile: Lámina O-30 corrugated panel
Applicable Materials: Galvanized steel, color-coated steel, galvalume steel, etc.
Material Thickness: 0.3 mm – 0.8 mm
Coil Width: 914 mm / 1000 mm / 1220 mm (customizable)
Effective Forming Width: Approx. 840 mm (depending on specific profile design)

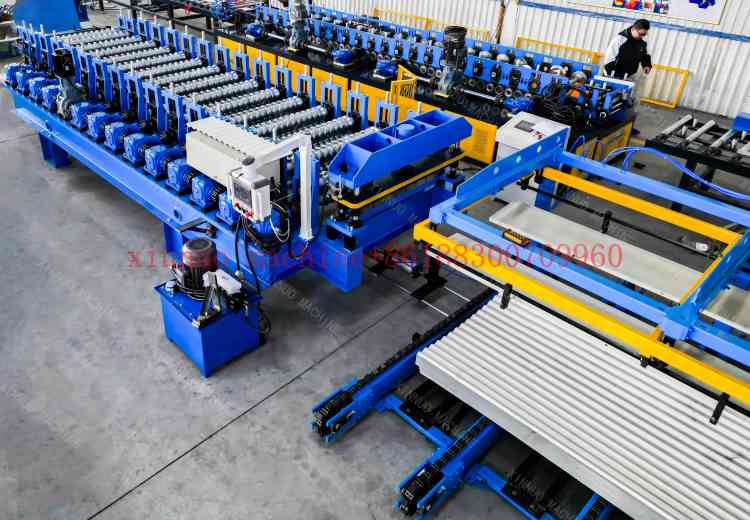

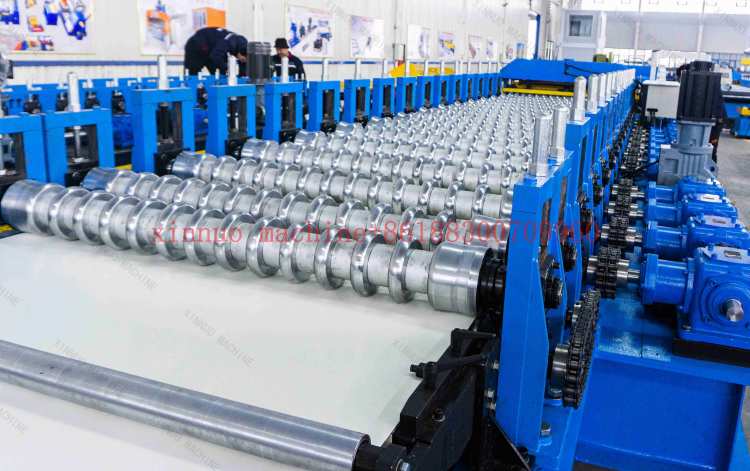

Forming Stations: 16–22 stations (based on profile structure)
Frame Structure: Gantry-style heavy-duty welded frame, thickened heavy steel plate for high strength and excellent stability

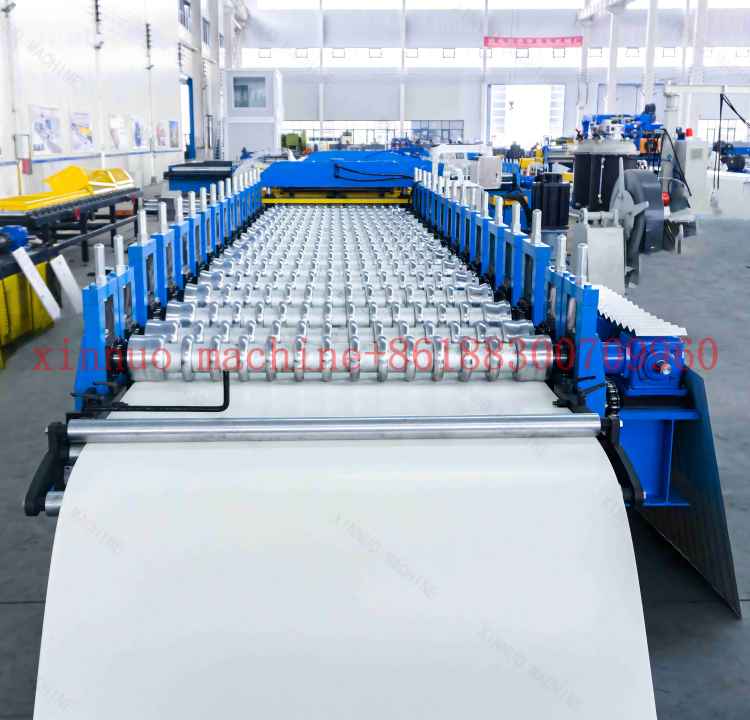

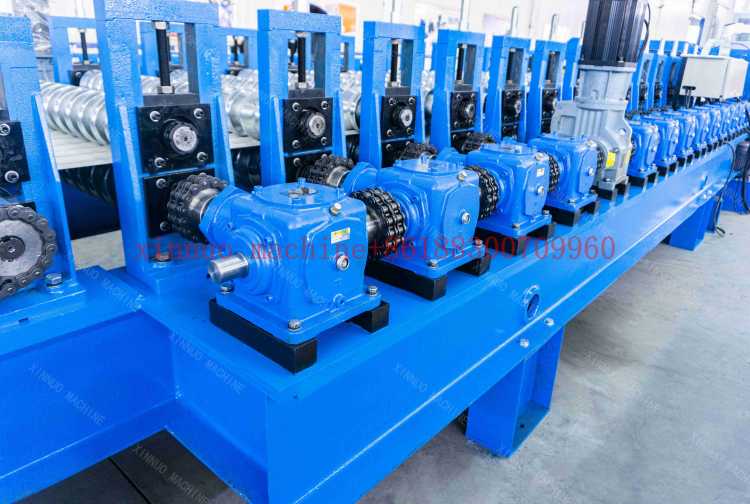

Drive System: Gearbox drive, providing high transmission efficiency, stable power output, and easy maintenance
Shearing Method: Guide post hydraulic shear, precise cutting, long service life, reduces material waste
Main Motor Power: 5.5–7.5 KW (depending on configuration)
Hydraulic Power Unit: 3 KW
Forming Speed: 15-20 meters per minute (depending on material thickness and process parameters)
Control System: PLC automatic control with multilingual touchscreen interface (supports Chinese, English, Spanish)
Optional Supporting Equipment:
Manual Decoiler: Suitable for small batch production, manual coil adjustment
Motorized Decoiler: Motor-driven for improved feeding efficiency
Fully Automatic Hydraulic Decoiler (without trolley): Automatic expansion and hydraulic lifting for enhanced production continuity
Fully Automatic Hydraulic Decoiler (with trolley): Includes moving trolley for automatic coil feeding, reducing manual labor
Simple Receiving Rack: Manual receiving, simple and economical structure
Motorized Receiving Rack: Motor-driven receiving to improve production efficiency

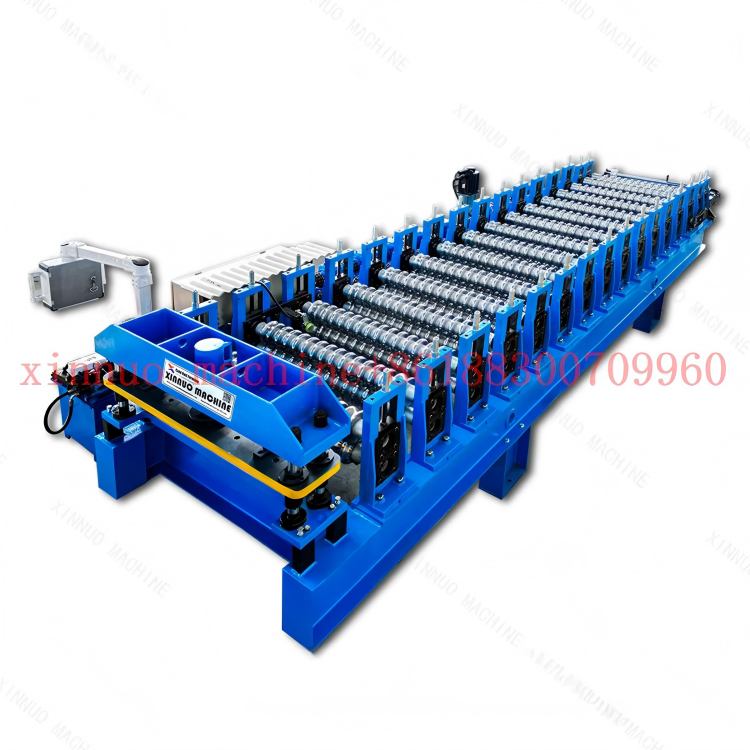

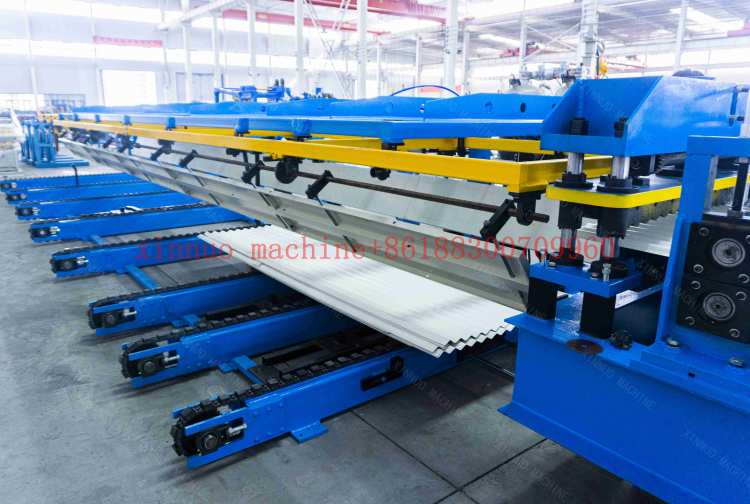

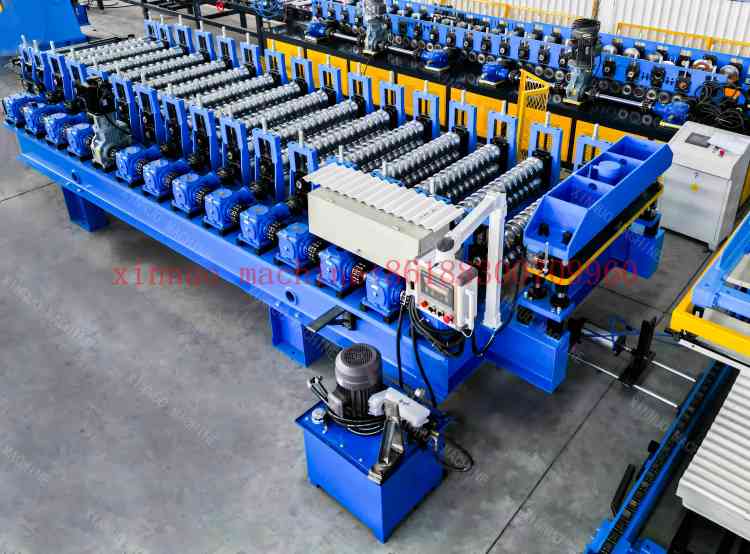

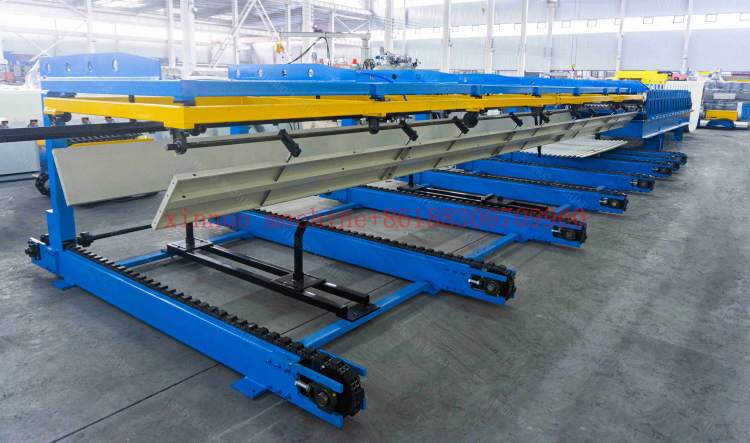

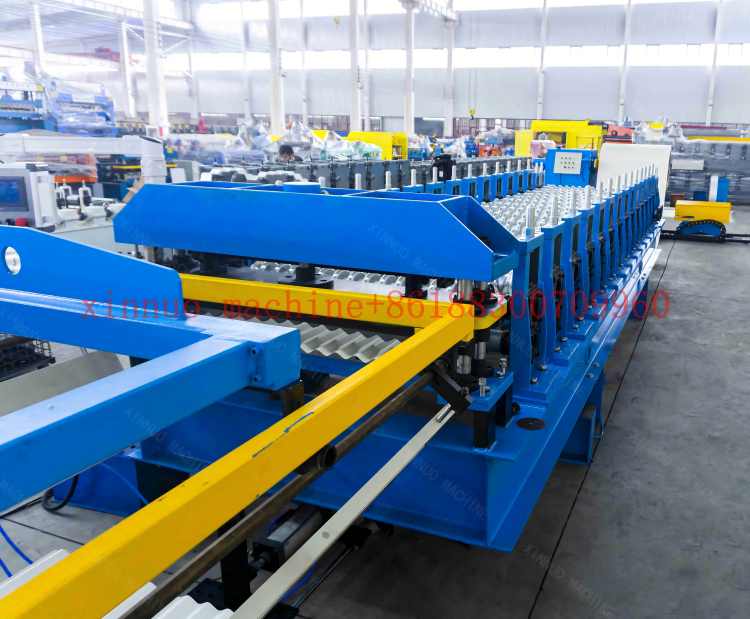

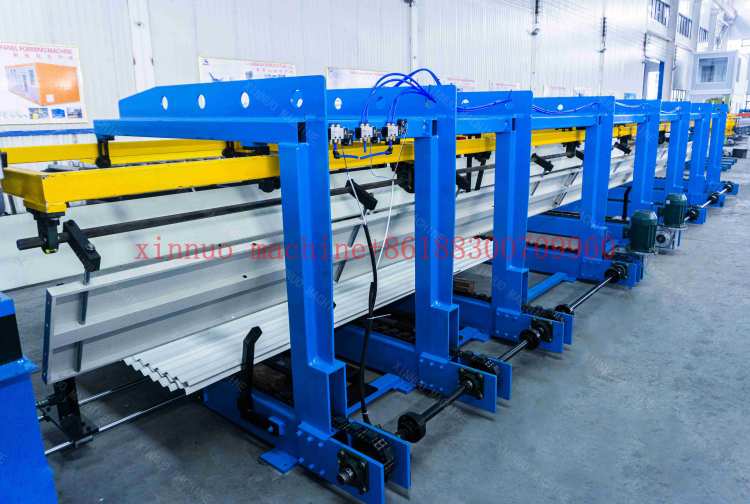

Fully Automatic Stacking Machine: Automatically organizes and stacks finished products, reducing labor and improving automation level
Equipment Advantages
Efficient Transmission: Gearbox drive offers smooth and powerful torque with reduced transmission loss and noise
Precise Shearing: Guide post hydraulic shear system ensures clean cuts and minimizes material waste
Robust Structure: Gantry-style heavy-duty welded frame guarantees stable operation and adapts to long-term high-load production
Easy Operation: Intelligent PLC control with user-friendly interface supporting multiple languages
Convenient Maintenance: Key components from internationally recognized brands ensure long maintenance intervals and lower costs
Flexible Expansion: Multiple optional supporting equipment can be freely combined based on production needs
Target Markets:
This model primarily targets Latin American and global markets, especially suitable for manufacturing Lámina O-30 corrugated steel panels used in industrial factories, warehouses and logistics centers, agricultural buildings, and similar applications. It has been successfully exported to Mexico, Peru, Colombia, and other countries.
