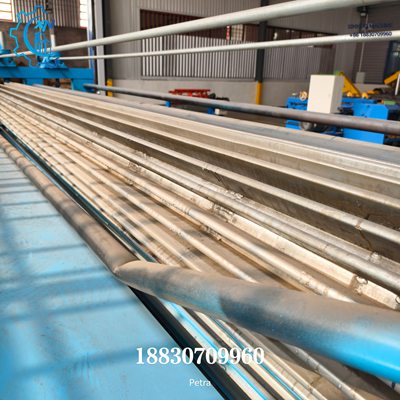

Barrel corrugated roll forming machine

Product Attributes :

The Barrel Corrugated Roll Forming Machine is a special processing equipment mainly used for producing corrugated metal sheets and corrugated panels. Its core function is to process flat metal strips or metal coils into continuous corrugated or undulating structures, and finally form corrugated profiles that meet the requirements. The Barrel Corrugated Roll Forming Machine is specially designed to realize the continuous forming of metal sheets, which is efficient and precise, and is widely used in the processing of various corrugated profiles.

Product Description

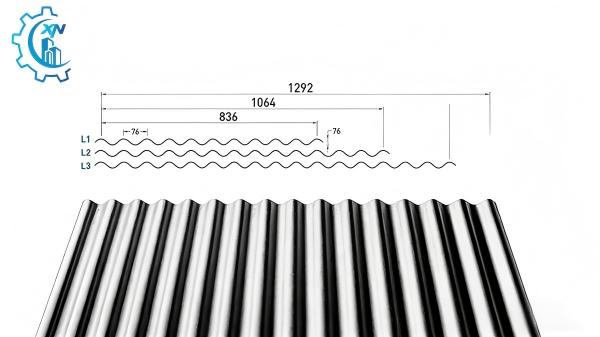

1. Corrugated Sheet Profile Diagram

2. Compact Body Structure

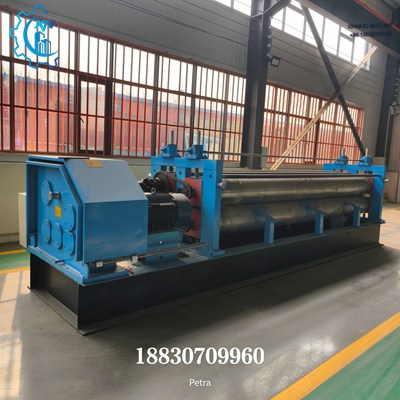

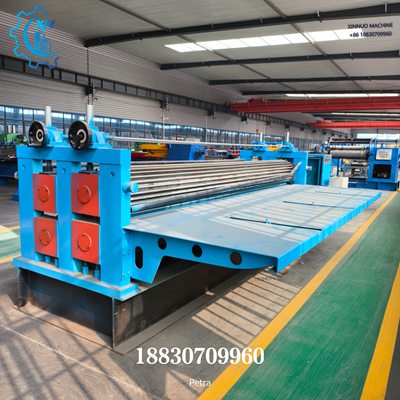

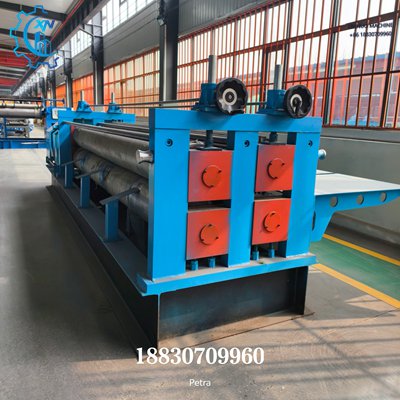

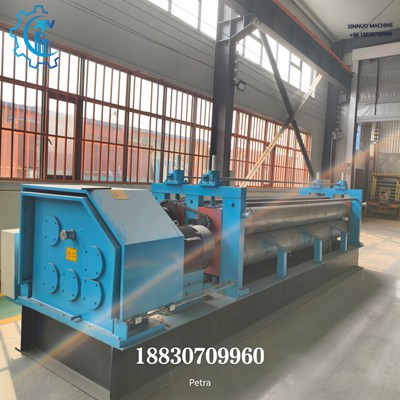

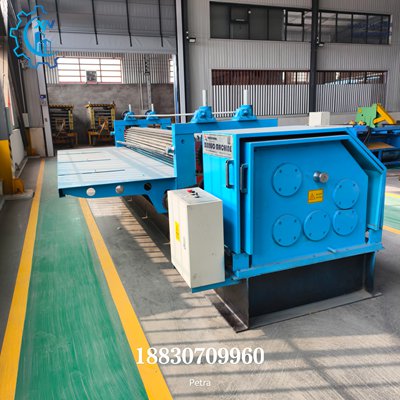

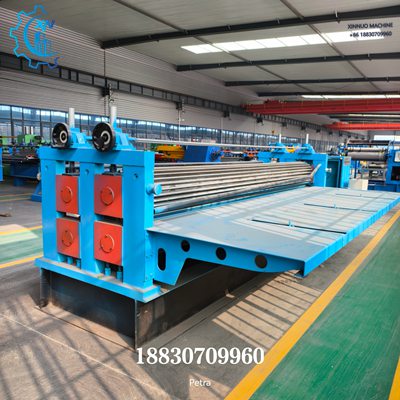

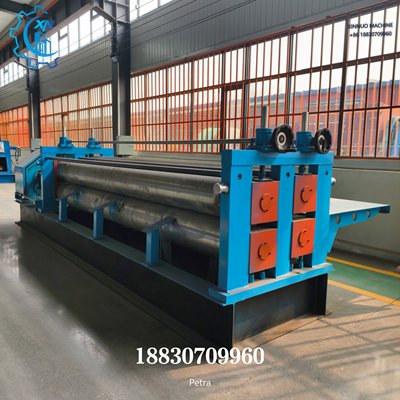

The Barrel Corrugated Roll Forming Machine is driven by a main motor with deceleration, which drives the upper and lower barrel-shaped forming rolls to operate synchronously through a precision gear mechanism. The two rolls always maintain a stable meshing state to ensure forming accuracy. The sheet metal is placed on a movable workbench and fed accurately by a crank feeding mechanism, which effectively prevents the sheet metal from shifting or misaligning when entering the Barrel Corrugated Roll Forming Machine. After forming, the discharge roll can accurately correct the wave crest height to ensure that the wave crest height is stably maintained at 76mm.

3. Simple Operation and Control

The Barrel Corrugated Roll Forming Machine is equipped with frequency conversion speed regulation technology. According to the differences in specifications and materials of raw material sheets, it can flexibly set the forming speed and feeding speed to accurately match different processing needs, thereby achieving the best forming effect, reducing operation difficulty and improving processing efficiency.
