The ridge forming machine from XINNUO is a professional solution engineered for roofing contractors and building material suppliers across Central and South America. From the sun-baked residential districts of Mexico to the highland communities of Brazil and the coastal developments of Chile, this machine produces precision stepped ridge caps that give metal roofs a clean, finished, and watertight appearance. Antique tile profiles remain one of the most popular roofing styles in Latin America, and this stepped ridge cap machine is designed specifically to match those profiles with exact forming geometry and consistent, repeatable output.
Technical Superiority

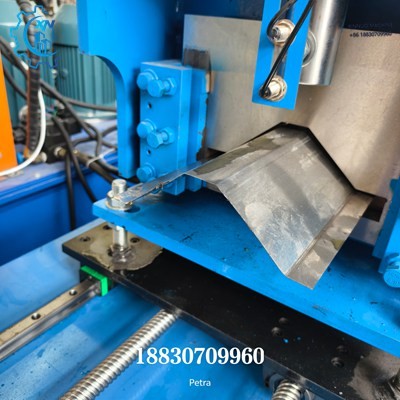

Built around a heavy-duty frame, the machine uses 45# steel rollers that are precision-machined and finished with hard chrome plating for outstanding wear resistance and a flawless surface finish on every profile. The hydraulic cutting system delivers clean, burr-free cuts with minimal noise and vibration, while PLC automation controls the entire forming and cutting cycle, allowing a single operator to manage production with simple touch-screen settings. The integrated stepping unit ensures that each ridge cap section is formed with accurate spacing and consistent overlap, guaranteeing dimensional stability from the first sheet to the last.
Solving Your Pain Points
Roof leaks are the number-one complaint on metal roofing projects, and they almost always begin at the ridge. This stepped ridge cap machine solves that problem through precise overlapping geometry, ensuring each cap interlocks tightly with the roof panels beneath it and creates a continuous waterproof barrier. At the same time, the machine's high-speed production dramatically reduces labor costs, because one operator can produce an entire day's supply of ridge caps in just a few hours, with no secondary cutting or finishing work required on site.
Technical Parameters
- Feed Width: 333mm / 400mm / 457mm (customizable)
- Thickness: 0.3 - 0.7mm
- Forming Speed: 8-12 m/min
- Power: 5.5KW
- Material: PPGI / GI / Aluminum
Note: The above parameters are for reference. Please contact us for exact specifications.
Additional Details

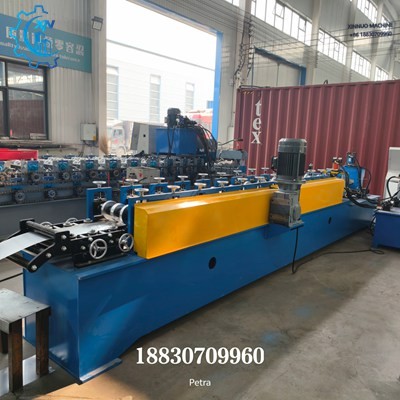

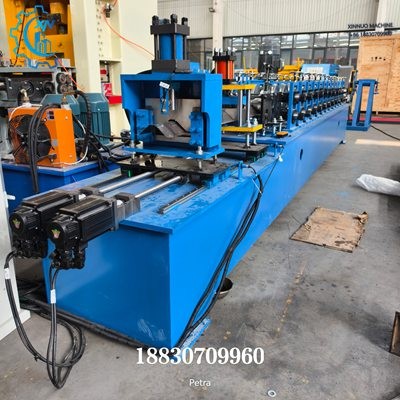

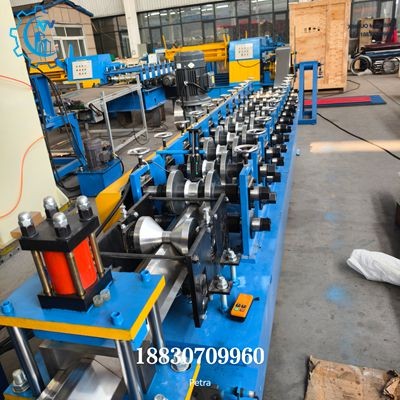

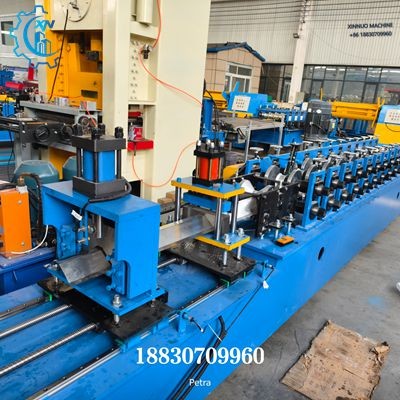

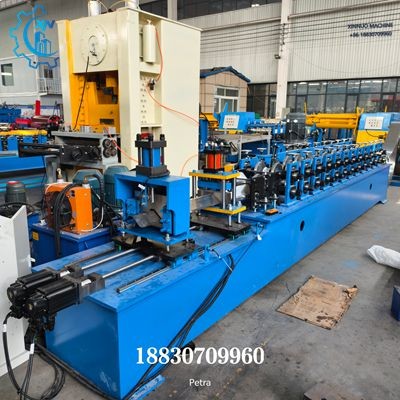

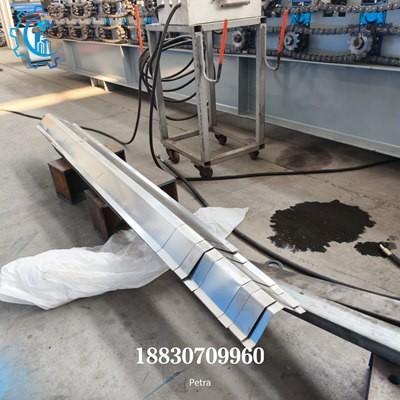

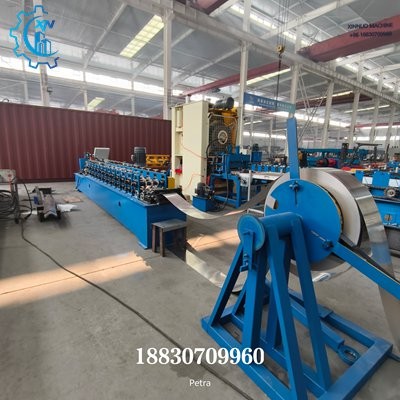

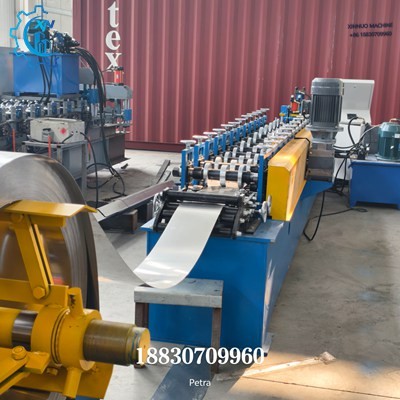

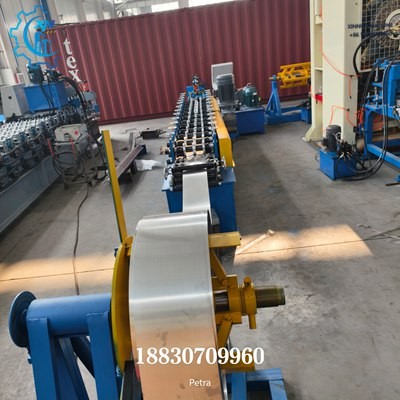

For a closer look at the build quality, the full machine gallery covers every key component: the machine overview, the rolling station close-ups, the hydraulic cutting unit, the PLC control cabinet, the stepping unit, and finished ridge cap samples. Each component is easily accessible for maintenance, and spare rollers can be produced quickly from our factory to keep your line running year after year.
