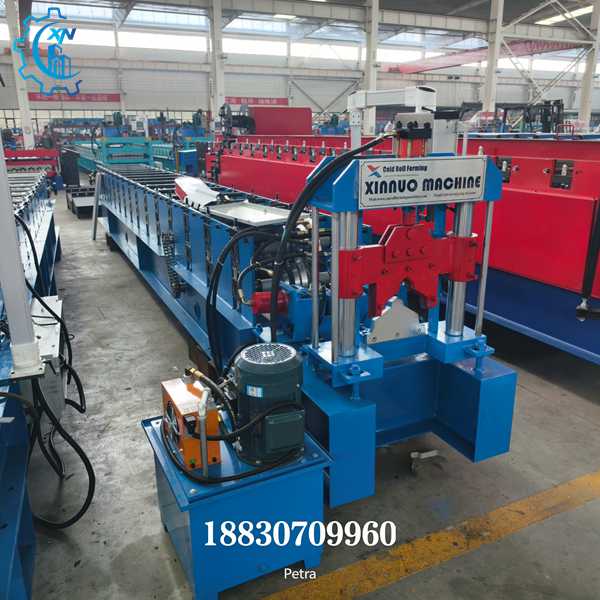

Ridge cap roll forming machine
This industrial-grade Ridge Cap Roll Forming Machine is specially designed for the automated production of high-quality metal ridge caps that provide excellent wind resistance, waterproof performance, and long-lasting roof protection. The machine features 14 precision-forming rollers made of 45# steel and a 14 mm heavy-duty steel plate frame, ensuring stable forming of pre-painted steel (PPGI) and galvanized steel (GI) with thicknesses ranging from 0.3 to 0.6 mm. It is equipped with a high-efficiency hydraulic cutting system and can be optionally fitted with a customized dynamic punching unit designed according to the profile of the roof panels, enabling precise punching of trapezoidal interlocking holes. As a factory-direct solution, this Ridge Cap Roll Forming Machine offers customers worldwide an outstanding balance of performance, cost-effectiveness, and a high return on investment.

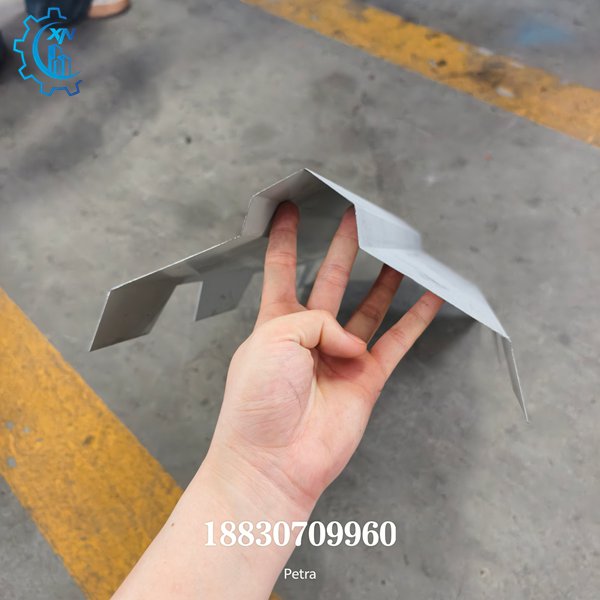

High-Efficiency Metal Ridge Cap Roll Forming Machine
In modern metal roofing systems, Metal Ridge Caps (Ridge Capping) are essential components for ensuring roof sealing, wind resistance, waterproof performance, and an attractive finished appearance. Our Ridge Cap Roll Forming Machine combines advanced cold roll forming technology with a highly rigid machine structure, making it an ideal solution for the automated production of ridge caps used in industrial buildings, residential houses, commercial projects, and other metal roofing applications.
Key Features and Advantages

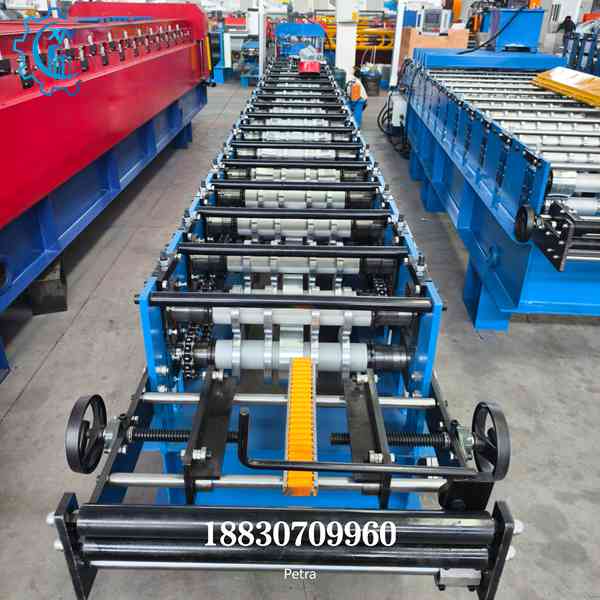

High-Precision Multi-Station Roll Forming
The machine is equipped with 14 high-precision forming stations featuring 45# steel rollers, a Ø65 mm solid shaft, and a 0.6-inch double-chain transmission system, ensuring uniform force distribution throughout the forming process. This results in smooth bending, excellent dimensional accuracy, and scratch-free finished products.

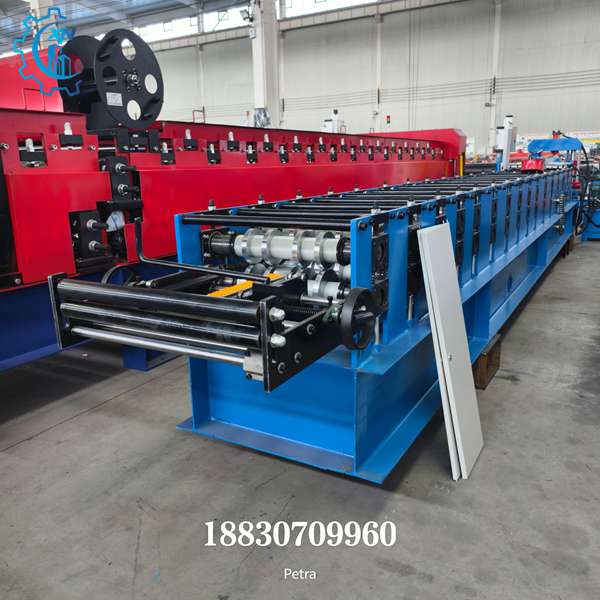

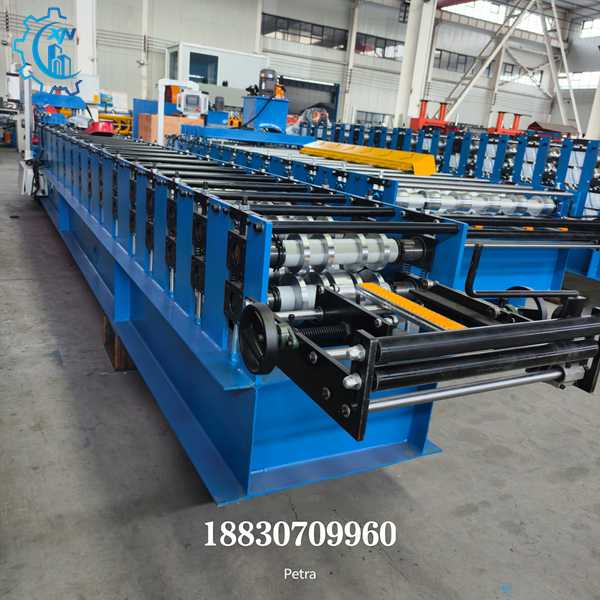

Heavy-Duty Frame for Long-Term Reliability
The machine base is constructed from 300 mm H-beam steel, while the side frames are manufactured from 14 mm thick steel plates, significantly enhancing the machine's vibration resistance, structural rigidity, and long-term durability during high-speed operation.

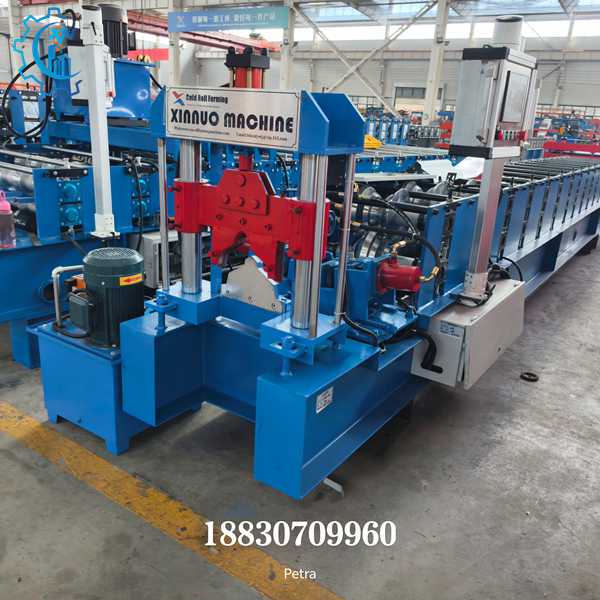

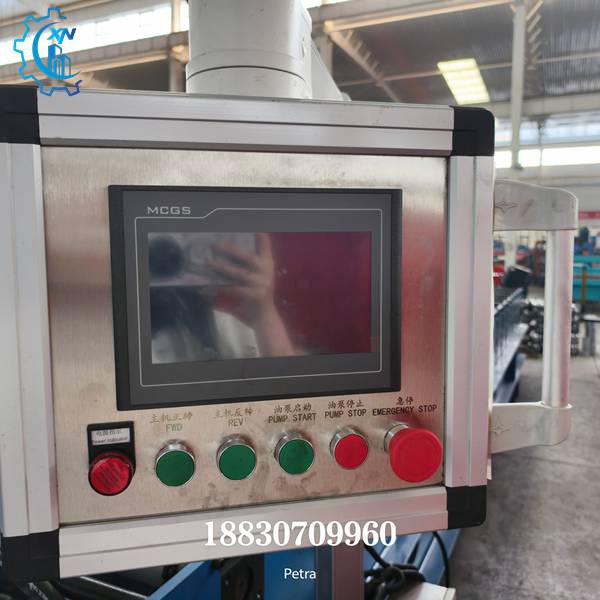

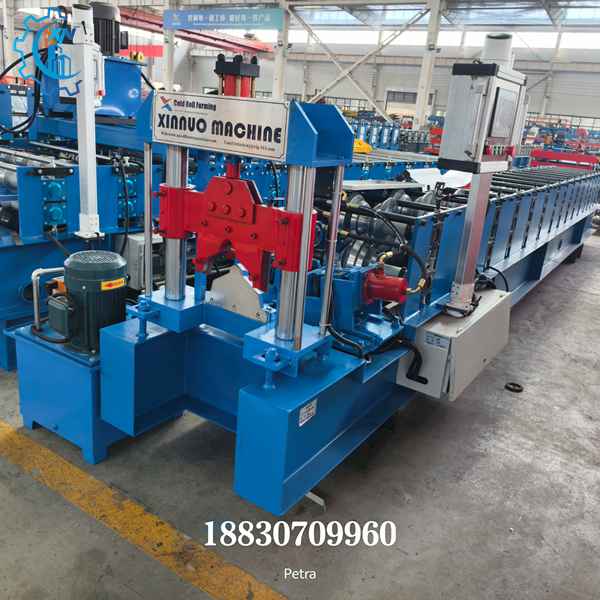

Burr-Free Hydraulic Cutting
Equipped with an independent 3.0 kW cutting motor and a high-performance hydraulic power unit, the machine delivers precise length cutting with clean, burr-free edges and no material deformation, greatly reducing secondary finishing work and labor costs.

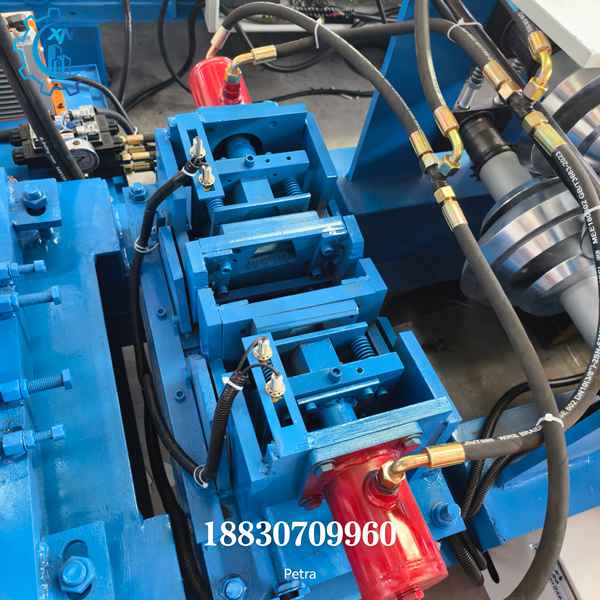

Custom Punching System with Excellent Flexibility

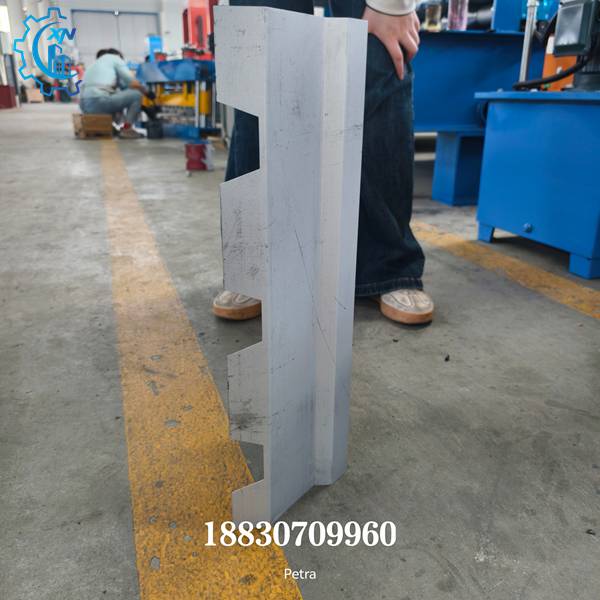

This Ridge Cap Roll Forming Machine is available in both an economical standard version and an upgraded version with an integrated punching unit. The punching system can be custom-designed according to the profile drawing of your roof panels, enabling precise punching of trapezoidal interlocking holes for a perfect, seamless connection with the main roofing panels.
Technical Specifications
| Specification | Economy Version | Standard Version |
|---|---|---|
| Material Thickness | 0.3–0.6 mm (Yield Strength: 195 MPa, Q235 Steel) | 0.3–0.7 mm (Yield Strength: 195–350 MPa) |
| Forming Stations | 14 | 16 |
| Roller Material | 45# Steel | 45# Steel |
| Machine Base | 300 mm H-Beam Steel | 350 mm H-Beam Steel |
| Shaft Diameter | 65 mm | 70 mm |
| Transmission System | 0.6-inch Double-Chain Drive | 1.0-inch Chain Drive |
| Machine Frame Structure | 14 mm Steel Plate | 16 mm Steel Plate |
| Main Motor Power | 3.0 kW | 5.5 kW |
| Cutting Motor Power | 3.0 kW | 4.0 kW |
| Cutting System | Hydraulic Cutting | Hydraulic Cutting |
| Electrical Components | Domestic Brand | Internationally Recognized Brand |
| Unit Price (FOB Tianjin Port) | USD 9,000 | USD 14,000 |
| Unit Price with Punching Function (FOB Tianjin Port) | USD 11,500 | USD 16,500 |
