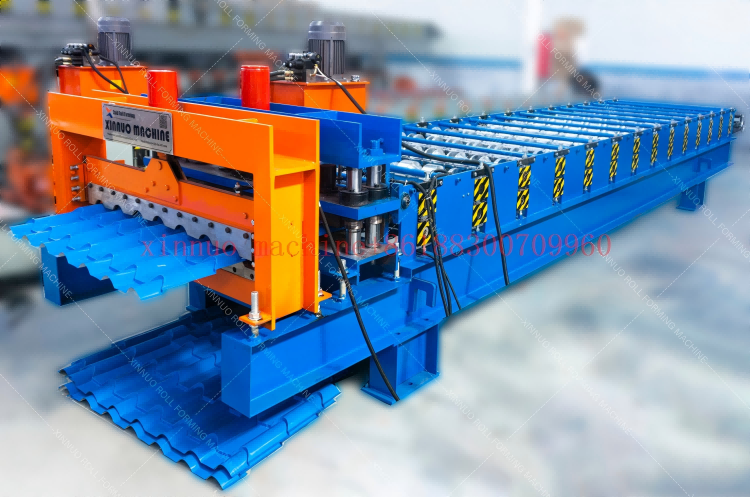

Glazed tile roll forming machine
glazed tile roll forming machine for Lámina Galvateja
— Panel splice cutting, heavy-duty frame structure, chain drive, customized high-quality roll forming production line for glazed tile metal roofing

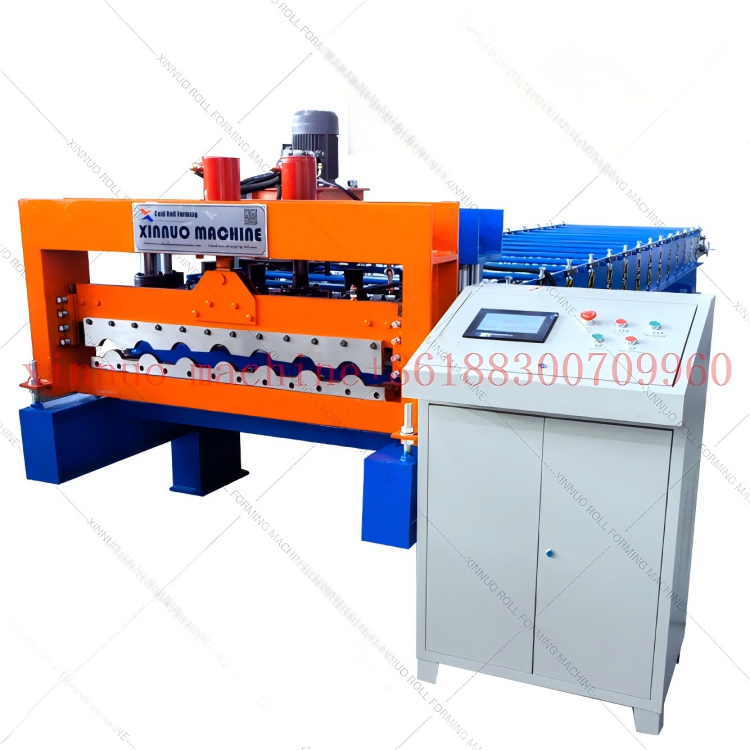

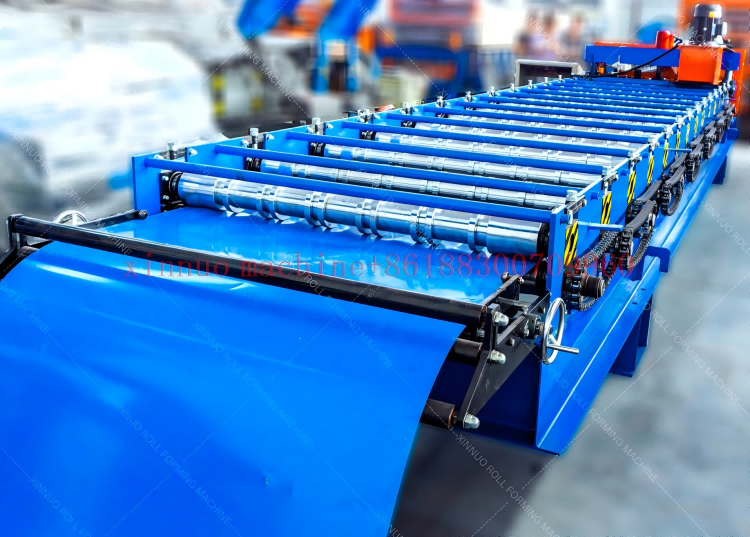

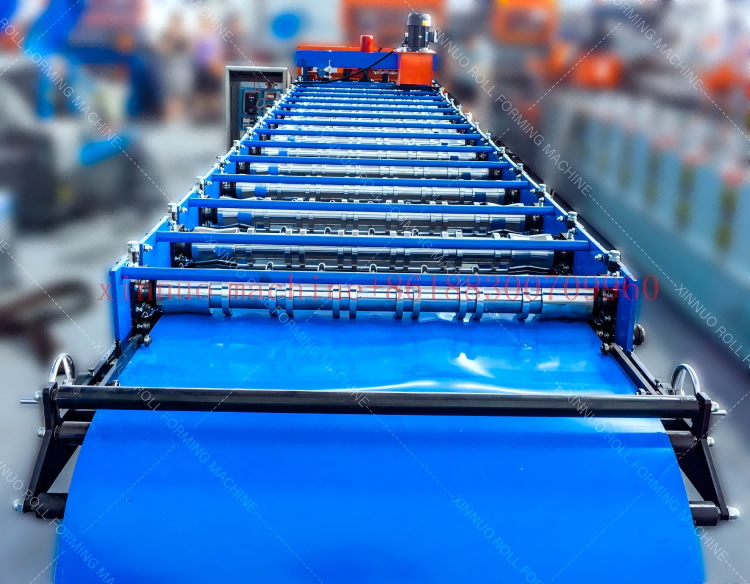

Xinnuo Roll Forming Machine Co., Ltd., with years of experience in the development and manufacturing of cold roll forming machines, has specially designed and manufactured this roll forming equipment set for Lámina Galvateja. The machine adopts a sturdy heavy-duty welded frame structure, equipped with a stable and durable chain drive system, and uses advanced panel splice cutting technology to achieve efficient and precise cutting, ensuring beautiful appearance and accurate dimensions of the products. It is suitable for mass production of glazed tile metal roofing sheets used in residential and commercial buildings.
Main Technical Parameters (customizable):
Applicable Product：Lámina Galvateja (glazed tile metal roofing panels)
Applicable Materials：Galvanized steel, galvalume steel, color-coated steel
Material Thickness：0.3mm – 0.6mm
Sheet Width (Uncoiled)：1000mm – 1250mm (customizable according to customer needs)

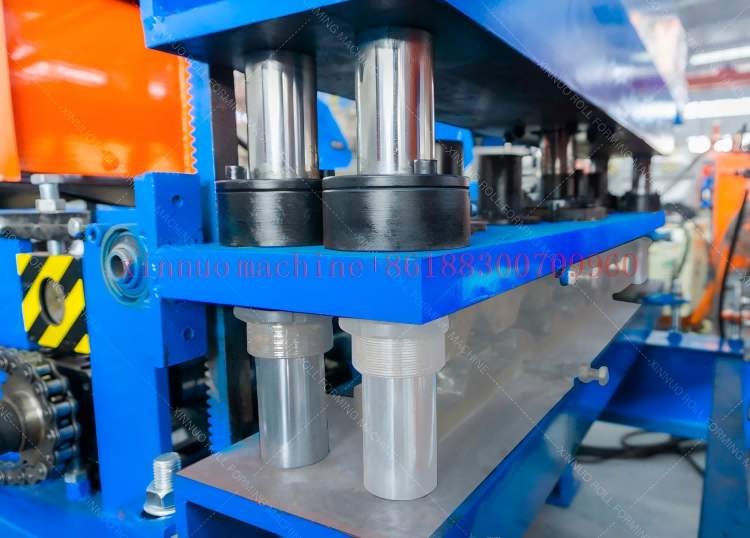

Forming Structure：Heavy-duty welded frame with 14-20mm thickness, sturdy and durable
Transmission Method：Chain drive, stable operation, easy maintenance

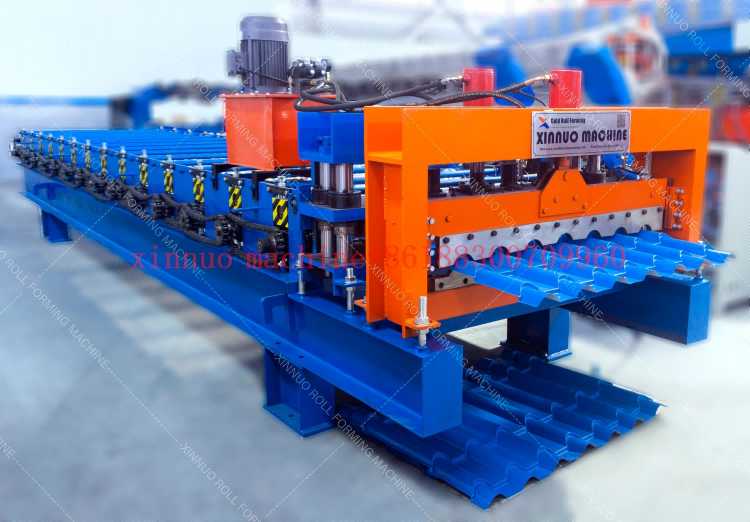

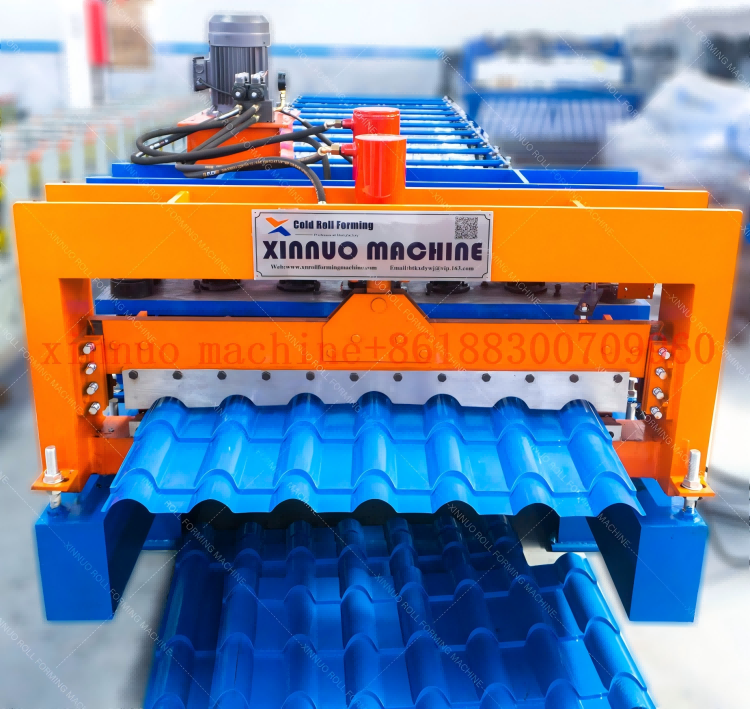

Cutting Method：Panel splice cutting, smooth cuts without burrs, reduces material waste
Forming Speed：8 – 15 meters per minute (adjusted based on material thickness and profile complexity)
Control System：PLC automatic control with multilingual touchscreen interface (Chinese/English/Spanish)
Main Motor Power ：5.5 – 7.5 KW
Hydraulic System Power：3 KW

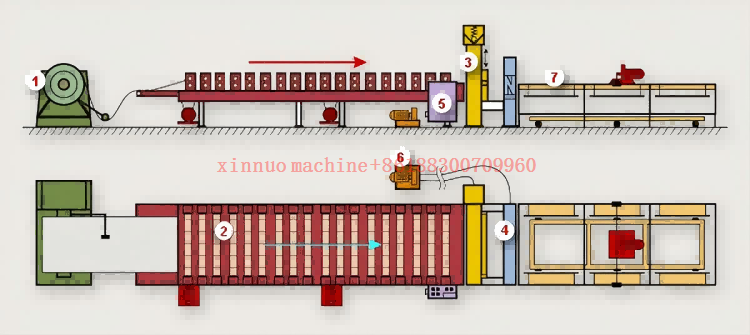

Optional Supporting Equipment:
Manual Decoiler：Economical and practical, suitable for small batch production
Motorized Decoiler：Motor-driven to improve feeding efficiency
Fully Automatic Hydraulic Decoiler (without trolley)：Hydraulic expansion and lifting, suitable for medium to large production lines
Fully Automatic Hydraulic Decoiler (with trolley)：Equipped with moving trolley for automatic feeding, saves labor
Simple Receiving Rack；Manual receiving, simple and cost-effective structure
Motorized Receiving Rack：Automatic product conveying to improve production efficiency
Fully Automatic Stacking Machine：Automatically organizes and stacks finished products, improving packaging automation
Equipment Advantages:
Professional Customization: Designed specifically for the shape of Lámina Galvateja to ensure clear tile contours and precise dimensions;
Robust Structure: Uses thick heavy-duty welded frame to ensure long-term stable operation;
Efficient Cutting: Panel splice cutting technology produces smooth cuts and reduces material waste;
Reliable Transmission: Chain drive system ensures stable operation and easy maintenance;
Intelligent Control: PLC system with touchscreen interface for simple operation, supporting multiple languages;
Flexible Configuration: Rich optional supporting equipment to meet different production scales and automation needs.
Applicable Markets and Export Status:
This machine is suitable for manufacturing high-end residential, villa, and commercial building glazed tile metal roofing sheets. It has been successfully exported to Mexico, Peru, Chile, Colombia, and other Latin American countries, receiving high praise from customers.
