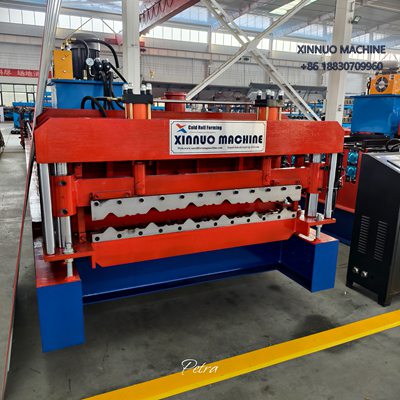

Glazed roof tile roll forming machine

Glazed Roof Tile Roll Forming Machine — Customized for the Brazilian Market

1. Machine Structure

The glazed roof tile roll forming machine adopts a middle-plate welded frame, ensuring high rigidity, long service life, and vibration resistance during continuous production.
Its compact design integrates all functional units on one base, offering stability and easy maintenance, ideal for high-precision tile forming.

2. Function and Working Principle

This machine is designed specifically for producing glazed roof tile sheets widely used in residential and commercial roofing projects.
The process includes automatic decoiling, feeding, roll forming, pressing, and cutting, achieving perfect tile shapes with smooth curves and elegant profiles that meet Brazilian aesthetic standards.

3. Raw Material Compatibility

The equipment is suitable for pre-painted galvanized steel (PPGI), galvanized steel (GI), and aluminum coils.
Standard coil thickness ranges from 0.3 mm to 0.6 mm, and width from 1000 mm to 1250 mm, ensuring flexibility to meet different customer requirements in Brazil’s roofing market.

4. Transmission System

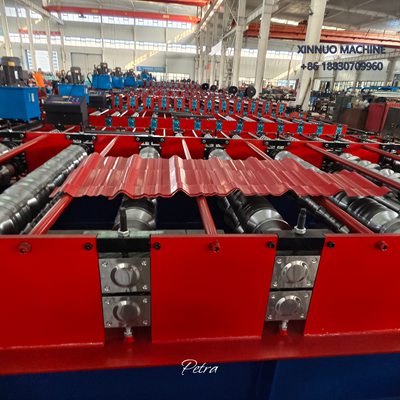

Driven by a heavy-duty chain transmission system, the machine ensures smooth, synchronized roller movement with minimal energy loss.
This simple yet robust system guarantees stable forming performance, low maintenance cost, and high reliability under continuous operation.

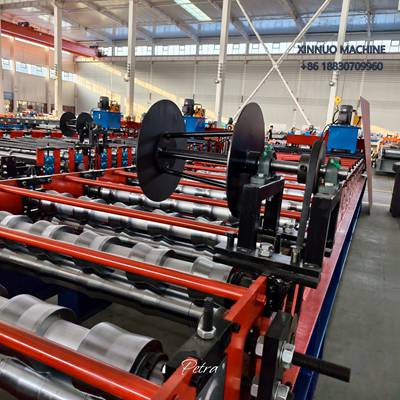

5. Tension Rewinder Device

Equipped with a tension rewinding device (收料丝装置), the machine maintains coil alignment and smooth feeding during the production process.
This prevents material slipping or uneven forming, ensuring consistent product quality and enhancing overall efficiency.

6. Control System and Operation

The production line is managed by an advanced PLC control system with a touch screen interface, enabling full automation — from feeding to cutting.
Operators can easily set length, quantity, and pressing cycles with high precision, making it easy to use and safe to operate even for new workers.

7. Applications

The machine is mainly used for producing glazed roof tiles applied to residential houses, villas, schools, churches, and public buildings.
Its tiles feature beautiful appearance, strong weather resistance, and long durability, making it a popular choice in the Brazilian roofing market.

8. Performance Advantages

• Specially customized for Brazil’s market standards and roof styles

• Middle-plate structure for strong frame and long lifespan

• Chain drive system for smooth and reliable transmission

• Equipped with tension rewinder for stable feeding and neat edges

• High forming accuracy, minimal material waste

• Automatic control for high efficiency and labor saving

• Easy maintenance and quick profile changeover

After-Sales Service

We provide a one-year free warranty and lifetime online technical support.
Our experienced engineers offer remote guidance, video installation, and technical consulting to ensure your production runs smoothly from day one.
