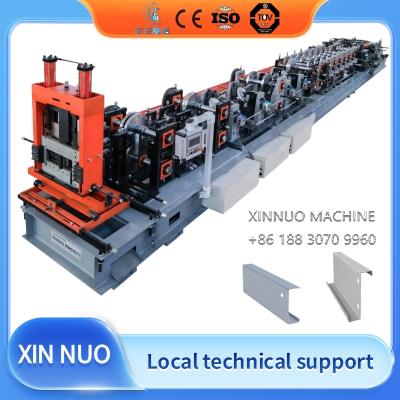

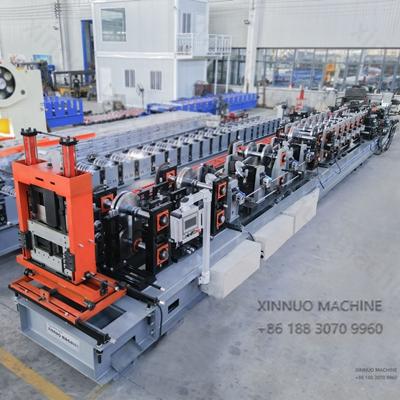

CZ purlin roll forming machine
Main Features:
Automatic C/Z Profile Switching:
Equipped with an intelligent adjustment system, the machine can switch between C and Z purlin profiles at the push of a button—no need to change molds. Fast transition, easy operation.
Multi-Specification Quick Adjustment:
Web height range from 68 mm to 200 mm. Width, flange height, and other dimensions can be electrically adjusted to meet the needs of various purlin sizes.
Suitable for Medium to Thick Sheet Processing:
Capable of processing galvanized steel coils with thickness from 2.0 mm to 3.0 mm. Ideal for large-scale purlin production used in industrial buildings, warehouses, and steel structures.

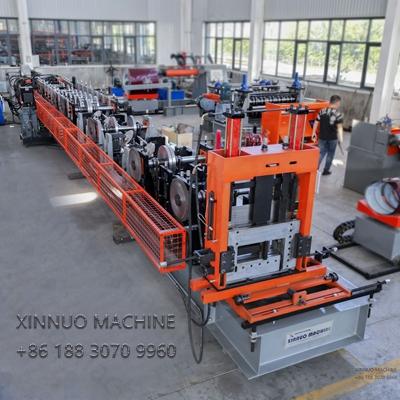

CZ Purlin Roll Forming Machine
1. Standard Configuration Includes:
1 Set of 5 Ton Manual Decoiler
Sturdy structure, suitable for coils with various inner diameters. Maximum loading capacity up to 5 tons.

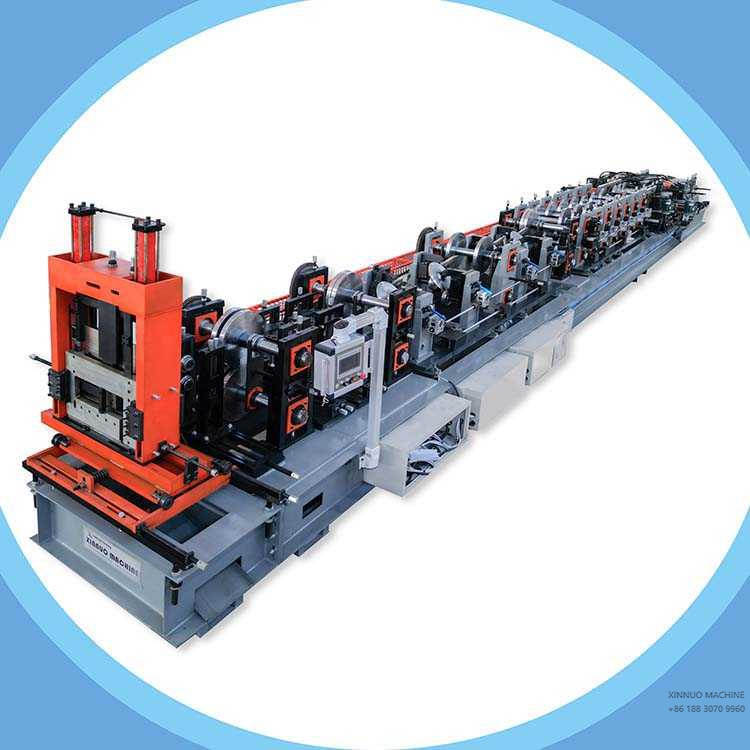

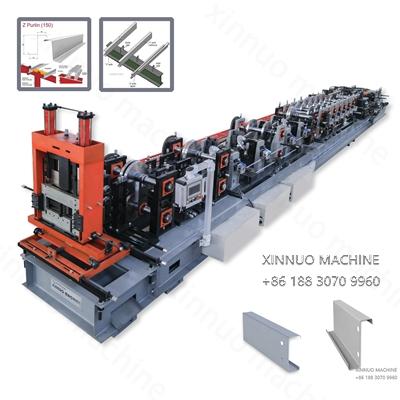

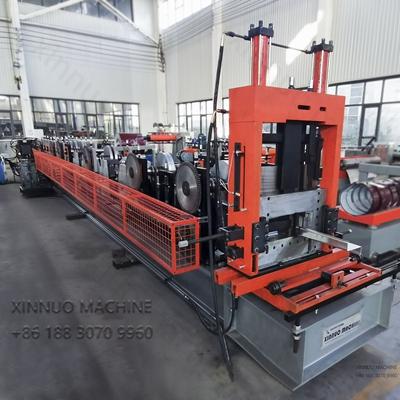

1 Set of Integrated C/Z Purlin Forming Machine
Heavy-duty frame structure ensures long-term stable performance with large-scale design.
1 Set of High-Precision Forming Rollers
Rollers made of high-quality GCr15 bearing steel, with hard chrome plating for excellent wear resistance and precise profile shaping.
1 Set of Auto Width Adjustment System (Electric Control)

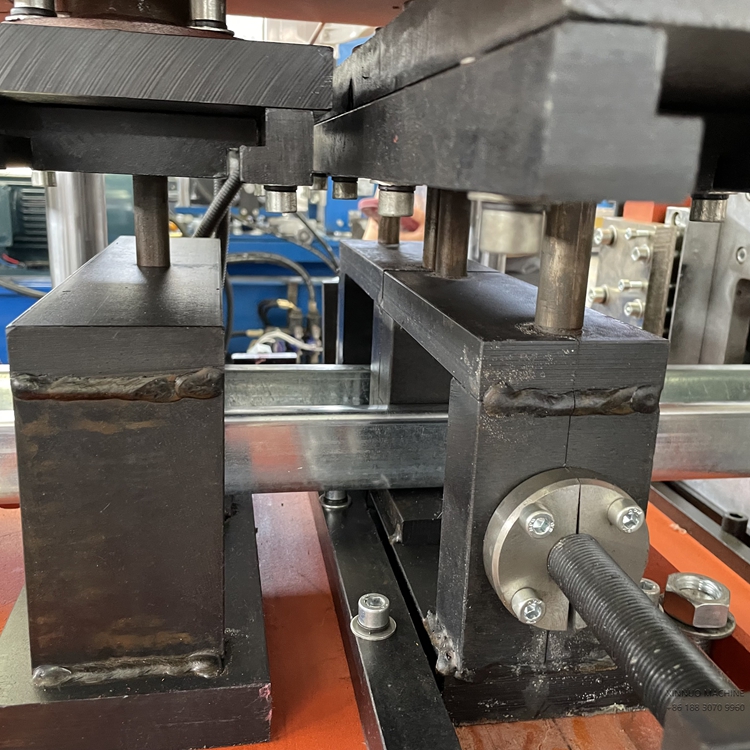

Equipped with motorized adjustment, rollers move synchronously to desired width with a single button press, saving significant labor and time.
1 Set of Fully Automatic PLC Control System
Touch screen interface, user-friendly and customizable in multiple languages (Spanish, English, French, etc.). Supports batch setting of various lengths and punching programs, enabling fully automated operation.
1 Set of Hydraulic Punching System
Used to punch round or oval holes on the web of purlins. Hole spacing, diameter, and quantity can be preset and programmed flexibly according to specific requirements.

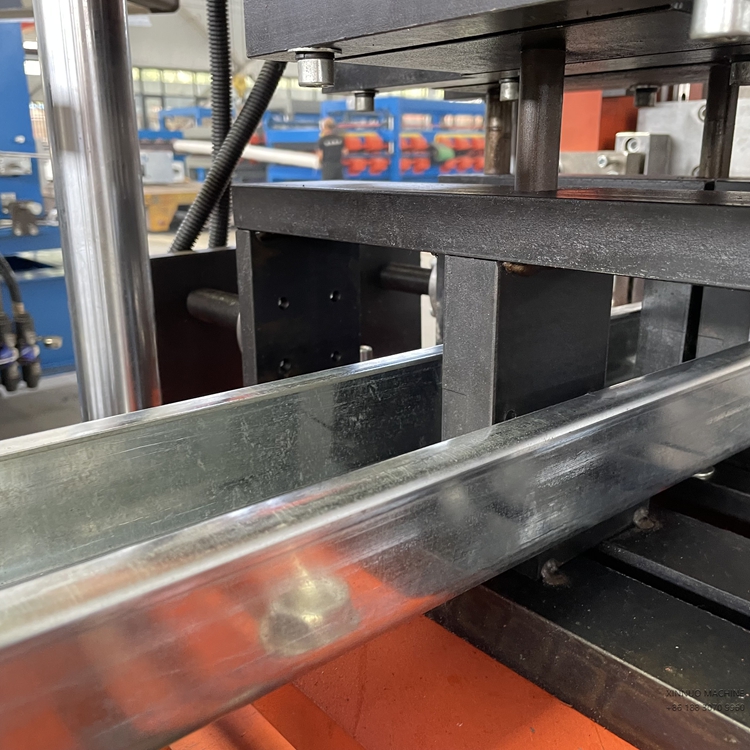

1 Set of Hydraulic Shearing System
Dual-cylinder structure provides powerful cutting force. Shearing blades are made of D2 tool steel and heat-treated for durability and clean cuts.

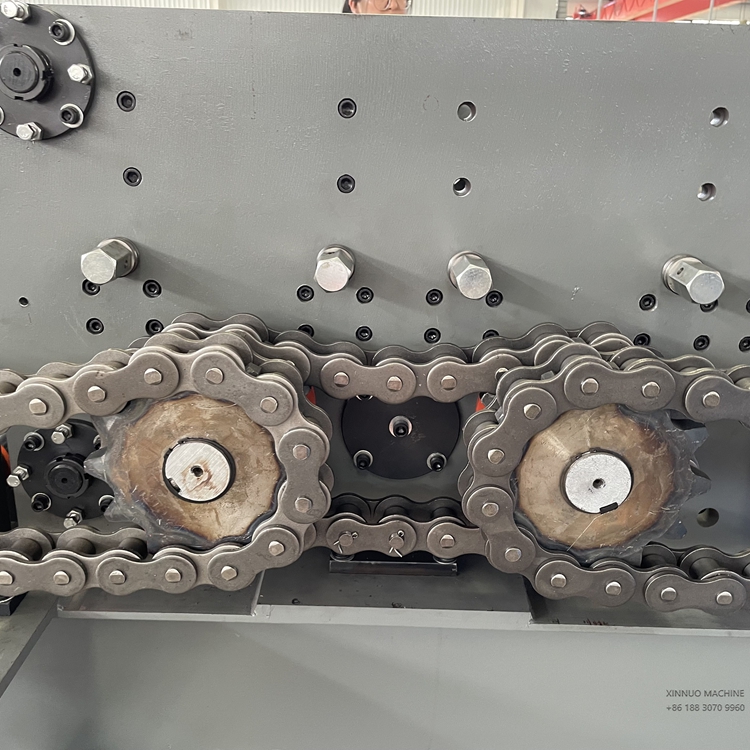

1 Set of Chain Drive System
Compact design with stable transmission performance. Easy maintenance, suitable for long-term heavy-duty work.

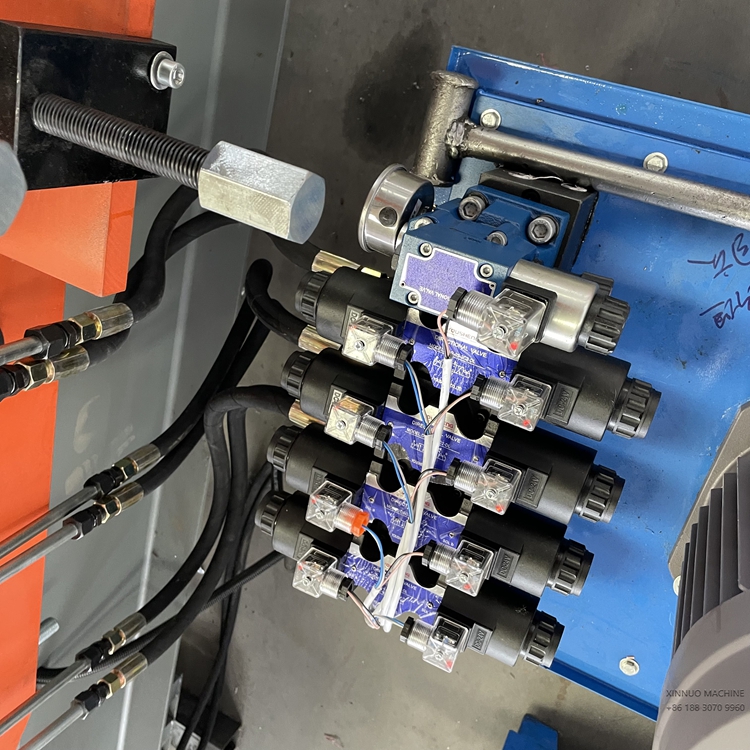

1 Set of Hydraulic Station
Provides strong and stable power for both the punching and shearing systems, ensuring smooth and responsive operation.
2. Technical Parameters:
Web Height Range：68 mm – 200 mm
Material Thickness：2.0 mm – 3.0 mm
Production Speed：Up to 15 meters/min
Forming Method：Multi-pass roll forming
Control System：Full-automatic PLC + Touch Screen
Auto Adjustment：One-button width + C/Z profile switch
Shearing Method：Hydraulic Shearing
Punching Method：Hydraulic Punching
Machine Dimensions：12000 mm x 1000 mm x 1200 mm
3. Application Fields:
The CZ Purlin Roll Forming Machine is widely used in the manufacturing of C/Z purlins for steel structure buildings, light steel workshops, warehouses, prefab houses, highway guardrails, solar panel supports, and other industrial projects.
