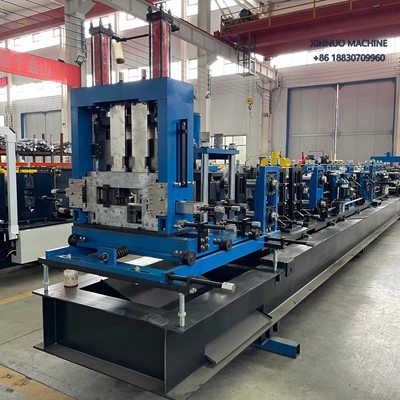

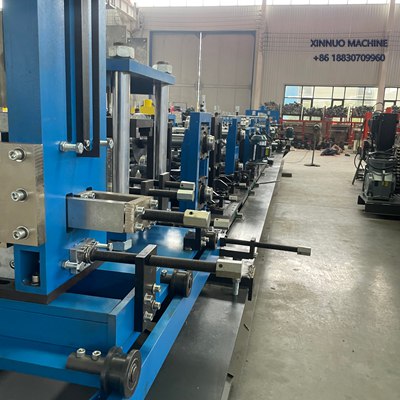

CZ Purlin Roll Forming Machine - Automatic C and Z Integrated Machine
The automatic C/Z interchangeable purlin roll forming machine is designed for high-efficiency steel structure production. It enables rapid switching between C and Z profiles without changing rollers, significantly improving flexibility and productivity. Equipped with PLC intelligent control, precision punching, high-strength Cr12 forming rollers, and an upgraded hydraulic cutting system, the machine ensures accurate, stable, and continuous production. With customizable configurations and strong structural design, it is ideal for long-term industrial-grade manufacturing.
Product Overview
The XINNUO automatic C/Z purlin roll forming machine is a heavy-duty integrated line for high-precision steel purlin production. Built on 80mm precision-ground 40Cr alloy steel shafts and driven by a 22KW hydraulic pump station with a 2-inch heavy-duty chain transmission, it delivers stable forming speeds of 15-25 m/min. Operators can switch between C and Z profiles automatically through PLC control without changing rollers, maximizing flexibility and uptime for continuous production.
Technical Specifications
| Profile Range | C and Z purlins (customizable width and height) |
| Shaft Diameter | 80mm (precision-ground 40Cr alloy steel) |
| Transmission | 2-inch heavy-duty chain drive |
| Hydraulic Pump Station | 22KW |
| Drive Motor | 3000 Series motor |
| Roller Material | GCr15 bearing steel, HRC 58-62, chrome plated |
| Control System | Mitsubishi/Siemens PLC with touch screen |
| Forming Speed | 15 - 25 m/min |
| Optional | 22KW servo motor |
Key Features
- Automatic C/Z profile changeover via PLC - no roller replacement needed, changeover completed in minutes.

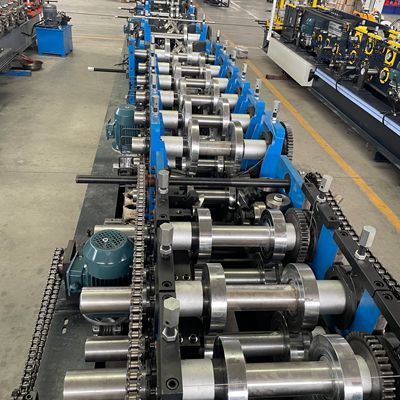

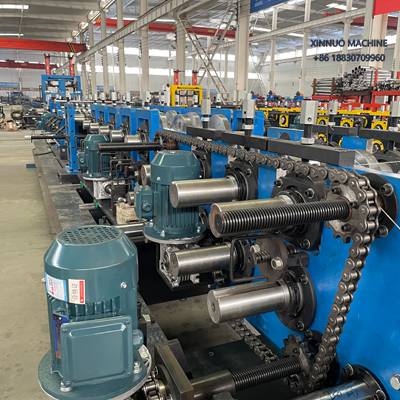

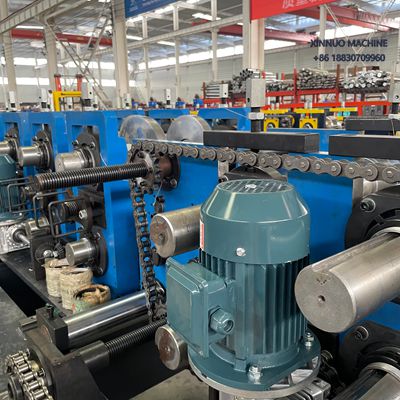

- Heavy-duty 80mm main shafts with 2-inch chain transmission ensure stable, precise forming at 15-25 m/min.
- 22KW hydraulic pump station powers the full line, including punching and cutting, for continuous high-output runs.
- GCr15 bearing steel rollers (HRC 58-62, chrome plated) deliver long service life and consistent profile accuracy.
- Intelligent PLC touch-screen control automates feeding, punching, forming, and cutting with multi-language support.

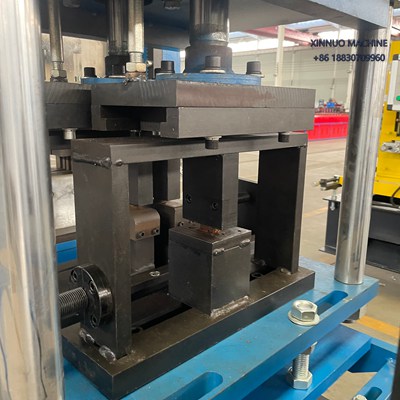

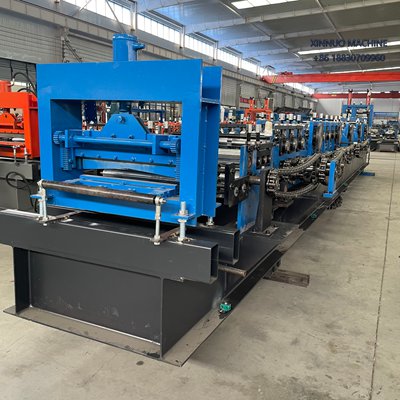

- Punching and hydraulic cutting configurations can be customized to order for flexible C/Z production.
