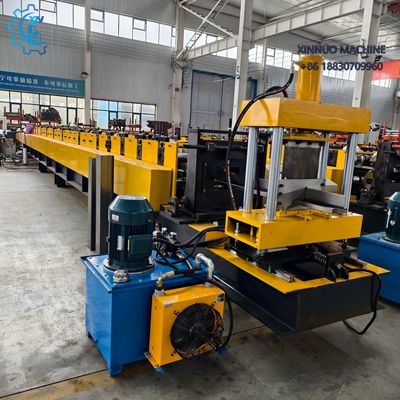

Container house bottom side rail roll form machines
The XINNUO XN-BSR300 is a high-performance, multi-functional roll forming system designed for the primary structural elements of prefabricated container houses. This machine is optimized for the production of both bottom side rails and heavy-duty corner pillars, forming the rigid horizontal and vertical chassis of modular housing units. Engineered for galvanized steel between 2.0mm and 4.0mm, the XN-BSR300 ensures the load-bearing capacity of the container house floor and frame. With synchronized hydraulic punching and precision bending, it provides a cost-effective, high-speed solution for modular construction factories focused on flat-pack and mobile container builds.
The XN-BSR300 is a cornerstone of the modular housing manufacturing process. While vertical posts provide height, the bottom side rails produced by this machine define the stability and strength of the living unit's base. This line handles the most demanding forming requirements of container house frames, ensuring that every bend and hole is perfectly positioned for rapid site connection. Its heavy-duty 350-type frame and oversized solid shafts are built to process thick-gauge galvanized material without compromising on speed or accuracy.
Main Features:

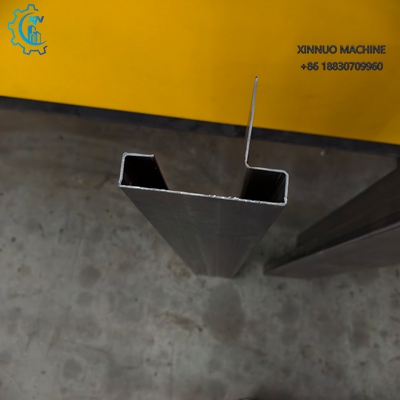

- Dual-Profile Capability: Specifically designed to manufacture the heavy-duty "C" and "U" profiles used in both the base frame (side rails) and vertical supports.
- Enhanced Load-Bearing Performance: Optimized for 3.0mm-4.0mm material thickness, providing the structural rigidity required for multi-story modular container stacking.

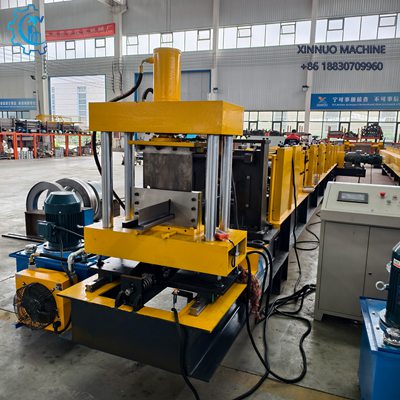

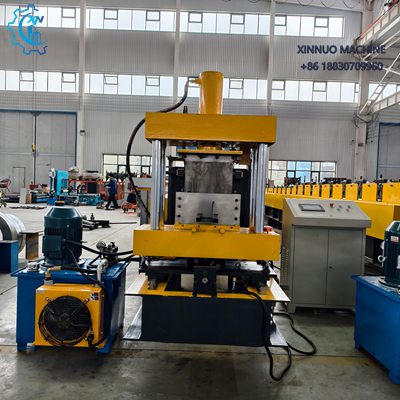

- Precision Frame Alignment: The integrated hydraulic punching system ensures all connection points for floor joists and corner castings align within ±0.5mm.
- Zero-Damage Surface Technology: Precision-ground GCr15 rollers prevent damage to the galvanized or color-coated surface.
Technical Highlights:
- Model: XN-BSR300 (Chassis & Post Integrated)
- Material Thickness: 2.0 mm – 4.0 mm

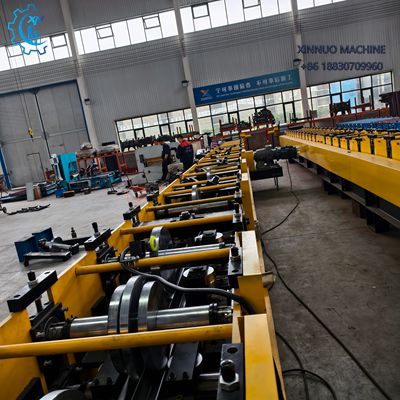

- Forming Stations: 22 – 26 Stations
- Main Motor Power: 15 kW – 18.5 kW
- Control System: Full PLC automation
The XINNUO Advantage for Modular Builders:
The XN-BSR300 is more than just a roll former; it is a chassis production center. We prioritize the "Flatness" and "Squareness" of the rails, ensuring that when the floor joists are laid, there is no warping or unevenness. This precision translates directly to faster onsite installation and a higher-quality finished container house for your end-users.
Note: This equipment is a heavy-duty industrial solution. For custom frame designs or multi-story project specs, please contact XINNUO for a tailored proposal.
