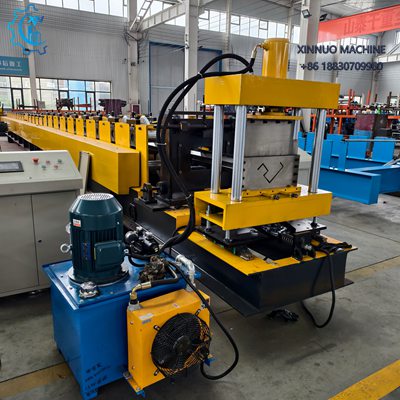

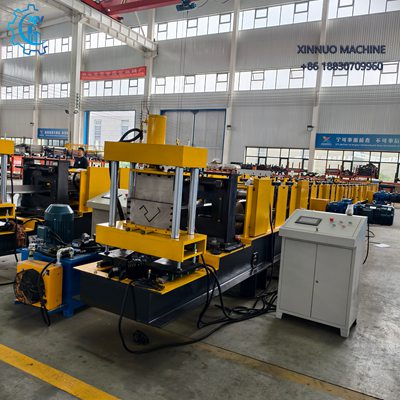

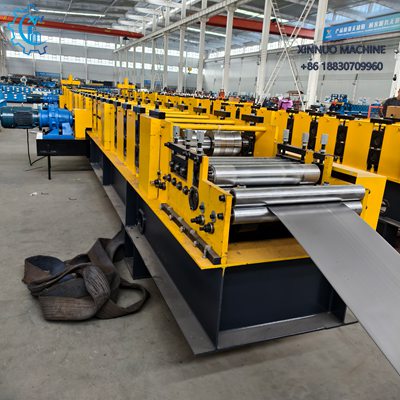

XINNUO XN-CP250 Prefabricated Container House Corner Post Roll Forming Machine
The XINNUO XN-CP250 is a specialized roll forming line designed for the manufacturing of corner columns used in prefabricated and modular container houses. Unlike heavy shipping container lines, this machine is precision-engineered to handle galvanized steel between 2.0mm and 4.0mm, producing the complex profiles required for flat-pack and detachable container frames. Featuring an integrated hydraulic punching system for bolt-hole arrays, the XN-CP250 ensures that every corner post is ready for immediate modular assembly, providing the structural backbone for energy-saving residential and commercial container buildings.
The XN-CP250 is the essential equipment for manufacturers of modern modular housing. It produces the four critical vertical columns that support the entire structure of a prefab container house. The machine focuses on dimensional stability and hole-positioning accuracy, which are vital for the seamless bolting of top and bottom frames. With its specialized roller design, it achieves sharp, clean bends on galvanized material without damaging the zinc coating, ensuring long-term corrosion resistance for the house frame.
Main Features:
- Modular House Optimization: Specifically designed for the "C" or "U" shaped multi-bend profiles used in flat-pack and detachable container house frames.

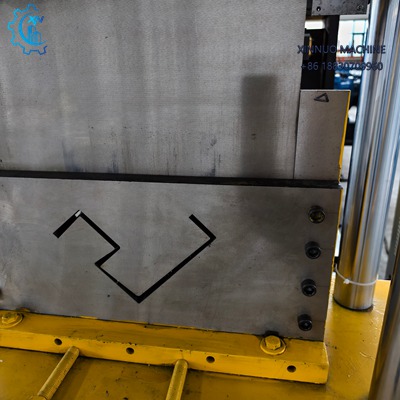

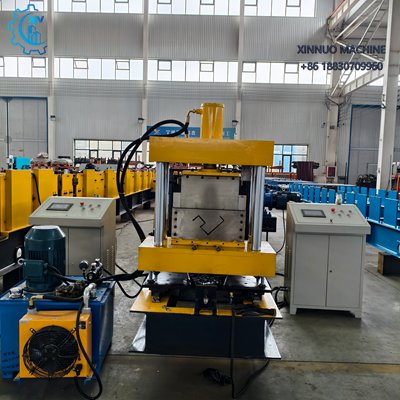

- Precision Multi-Hole Punching: Integrated hydraulic station with customized dies to punch all necessary connection holes for bolting in a single pass.

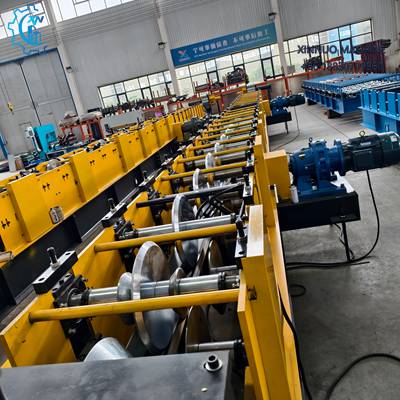

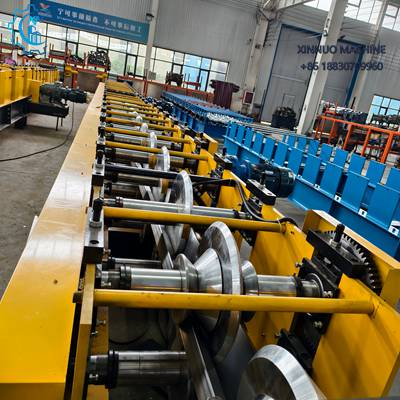

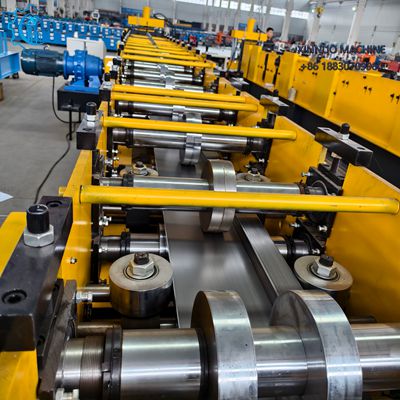

- Galvanized Sheet Protection: Precision-machined rollers with high surface finish to prevent scratching or flaking of the galvanization on 2.0-4.0mm coils.
- High-Accuracy Control: PLC-controlled length and punching sequences ensure that every corner post in a batch is identical, facilitating rapid onsite assembly.
Technical Specifications:
- Suitable Material: Galvanized Steel / Cold Rolled Steel
- Material Thickness: 2.0 mm – 4.0 mm
- Forming Stations: 18 – 22 Stations
- Main Motor Power: 11 kW – 15 kW
- Hydraulic Pump Power: 5.5 kW
- Control System: PLC with multi-language touchscreen interface
Why Choose XINNUO XN-CP250:
The XINNUO prefab house corner post machine is built for accuracy and assembly efficiency. We understand that in modular construction, a 1mm error in a corner post can compromise the entire house frame alignment. Our machine uses high-precision encoder tracking and reinforced forming stands to guarantee that every post fits perfectly into the top and bottom castings, significantly reducing onsite labor costs for your clients.
Note: This machine is customized for prefab house frames. Please provide your profile drawing for a specific technical proposal.
