1. Standard Configuration Includes:
1 Set of Manual Decoiler (1.5 Ton Capacity)
Sturdy structure with adjustable inner diameter, suitable for coils of various sizes. Easy to operate and ideal for small to medium-sized coil feeding.
1 Set of Heavy-Duty Main Machine Frame
Reinforced frame design ensures long-term stability and durability during continuous operation.
1 Set of High-Precision Forming Roller Set
Made of high-quality SAE 1045 steel, with 100% hard chrome plating on the surface. Excellent wear resistance and consistent forming accuracy.
1 Set of Fully Automatic Control System
Equipped with a color touchscreen. User-friendly interface supports multiple language customization and allows for batch job settings, enabling automated multi-task production.
1 Set of ASA80 Chain Drive System
Compact design with high transmission efficiency. Ensures smooth machine operation, low noise, and easy maintenance.
1 Set of Hydraulic Shearing System
Equipped with a dual-cylinder structure for strong and fast shearing. Automatically controls cutting length and quantity, improving production efficiency.
1 Set of High-Strength Shearing Blade
Blade made of VC131 steel and heat-treated for excellent wear resistance and long service life. Clean cuts with no burrs.
1 Set of Hydraulic Station
Provides stable power for the shearing system and supports fast, safe coil replacement through lifting and locking functions.
1 Set of Full Machine Safety Guard
Covers the forming roller area and shearing section, preventing accidental contact and ensuring operator safety.
2. Configuration Details:
Decoiler:
Manual type, adjustable to fit coils of different inner diameters.
Maximum load capacity: 1.5 tons.
Sturdy structure and easy operation.
Control System:
Fully automatic operation.
All parameters are set through a color touchscreen.
Supports multi-language customization and batch job programming.

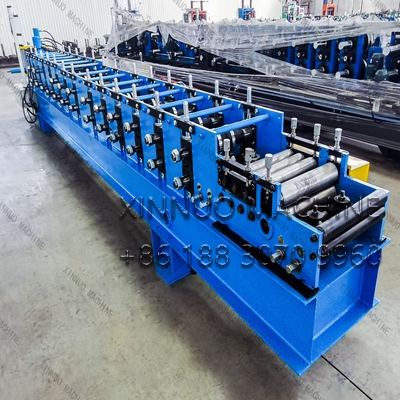

Main Machine:
Robust frame structure with multiple forming stations.
Forming rollers made of SAE 1045 steel with hard chrome coating for long-lasting high-precision operation.
Driven by chain transmission for stable and reliable performance.
Shearing System:
Hydraulic shearing with fast response.
Blades made of VC131 steel, heat-treated for high hardness and excellent wear resistance.
Automatic cutting action for high efficiency and accuracy.
Safety Guard:
Safety mesh covers the forming and shearing areas.
Improves safety level and prevents unauthorized personnel from entering hazardous zones.
3. Steel Strip Width Options：
70×40: 230 mm
80×40: 250 mm
90×50: 290 mm
