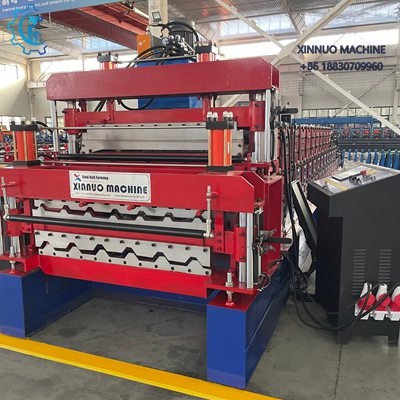

Three-Layer Roll Forming Machine
Product Attributes :

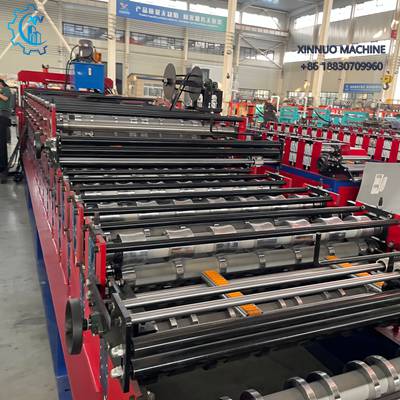

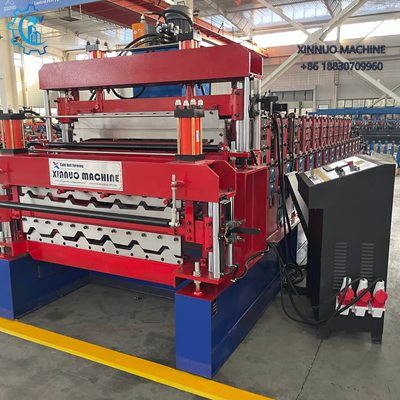

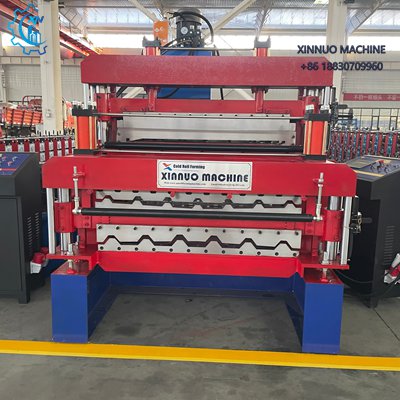

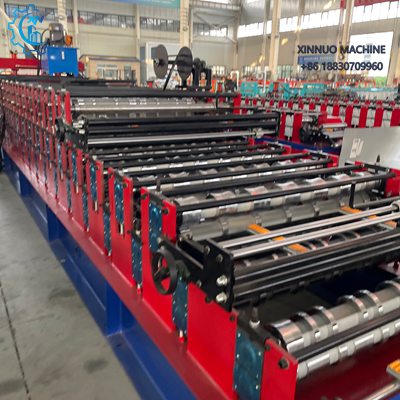

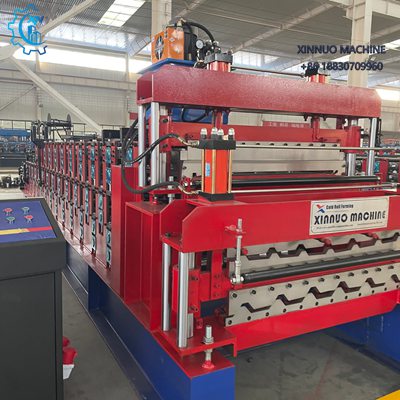

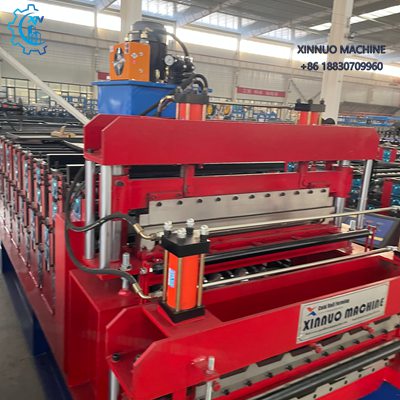

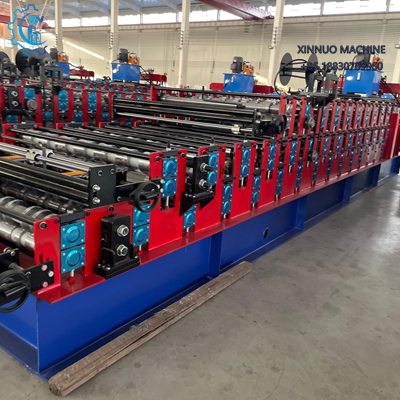

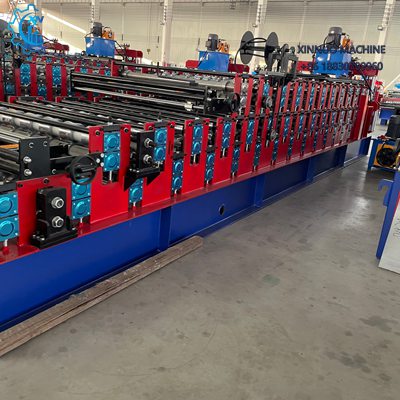

This three-layer roof panel roll forming machine can produce three different roof panel profiles simultaneously. It is suitable for 0.3–0.6mm thick aluminum-zinc coated steel sheets (yield strength: 195–235Mpa). The forming speed is 6–10 m/min, providing stable and efficient operation for residential, warehouse, and industrial roofing applications.
Product Description
Technical Parameters
| Item | Specification |
|---|---|
| Material Thickness | 0.3–0.6 mm |
| Yield Strength | 195–235 Mpa |
| Forming Speed | 6–10 m/min |
| Forming Profiles | 18+13+14 |
| Main Material | 45# steel |
| Post Spacing | 300mm H Steel |
| Chain Specification | 1.0 inch |
| Roller Plate Thickness | 14mm |
| Main Motor Power | 4KW |
| Hydraulic Cutting Power | 3KW |
Key Features
- Three-layer design: Three panel profiles processed at the same time.
- Guided post cutting system: Accurate dimensions, smooth edges, burr-free.
- Automatic wire feeding device: Reduces manual handling and simplifies operation.
- Durable structure: Main frame made of 45# steel; forming rollers are 14mm thick.
- Power system: 4KW main motor with 3KW hydraulic cutting ensures clean cutting.
- Chain drive: 1-inch chain drive, smooth operation, easy maintenance.
- High-quality domestic components: Hydraulic system, motor, and key parts from reputable domestic brands.
