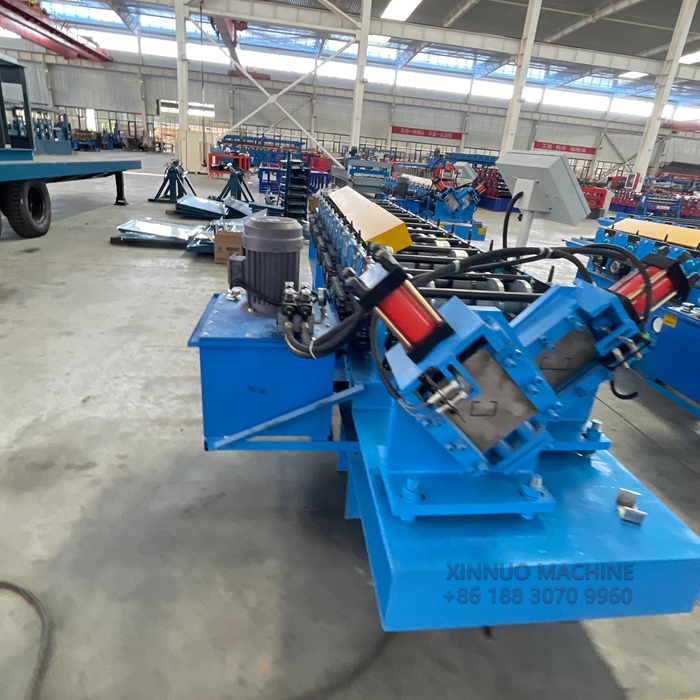

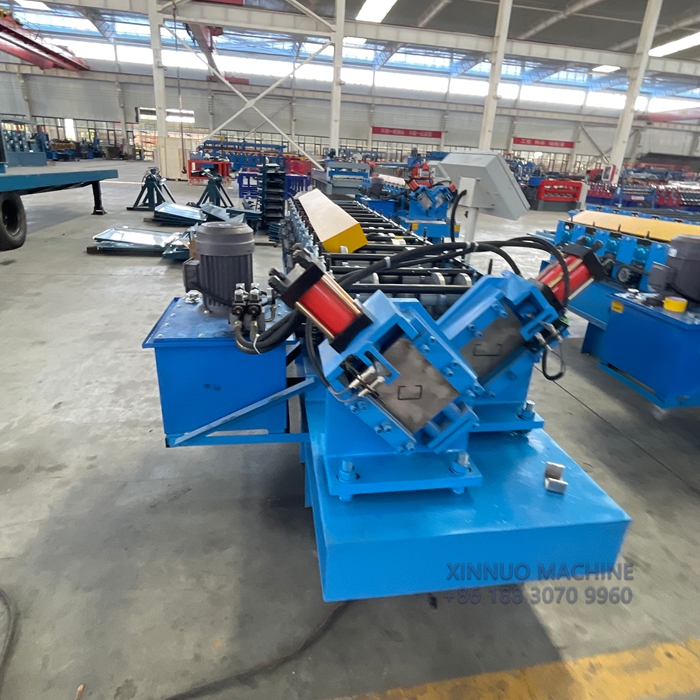

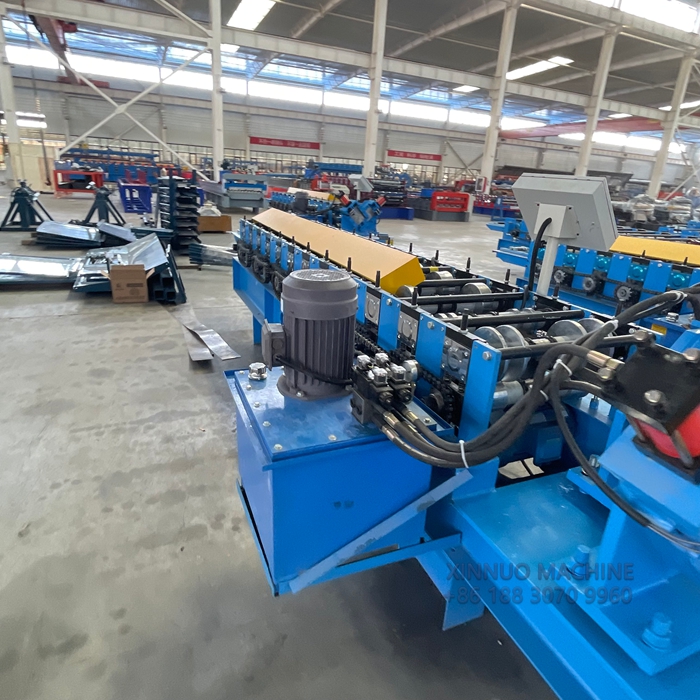

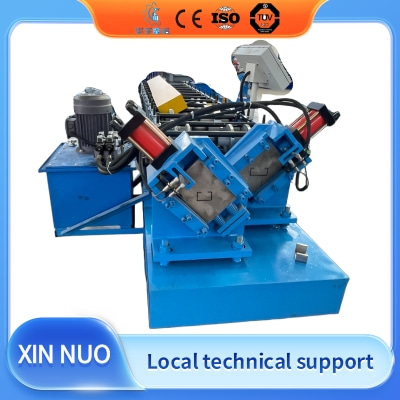

Double-row-channel-roll-forming-machine

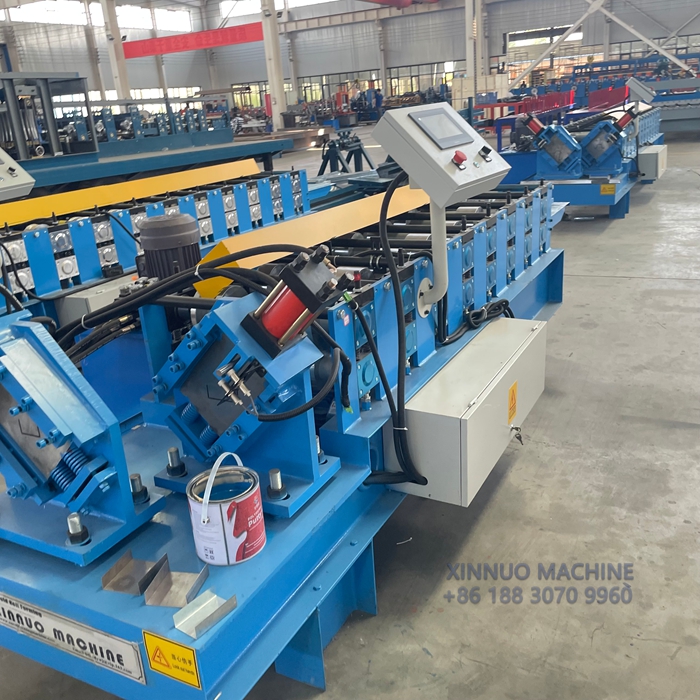

The double-row C-type channel forming machine independently developed by Xinnuo Roll Forming Machinery Co., Ltd. is an efficient, energy-saving and intelligent cold-bending forming equipment, specially designed to meet the needs of Chilean customers to process two types of C-type channels at the same time. It integrates two sets of forming systems on one set of equipment, and can produce two different types of light steel channel profiles on the same production line at the same time, greatly improving production efficiency and reducing labor and land costs.
Main technical parameters (customizable)：
Applicable materials: galvanized steel strip / cold-rolled steel strip
Material thickness: 0.3 – 0.8 mm
Material width: according to profile design (usually 40–100 mm)
Number of forming rows: 2 × (10–12 rows)
Production speed: 10 – 20 m/min

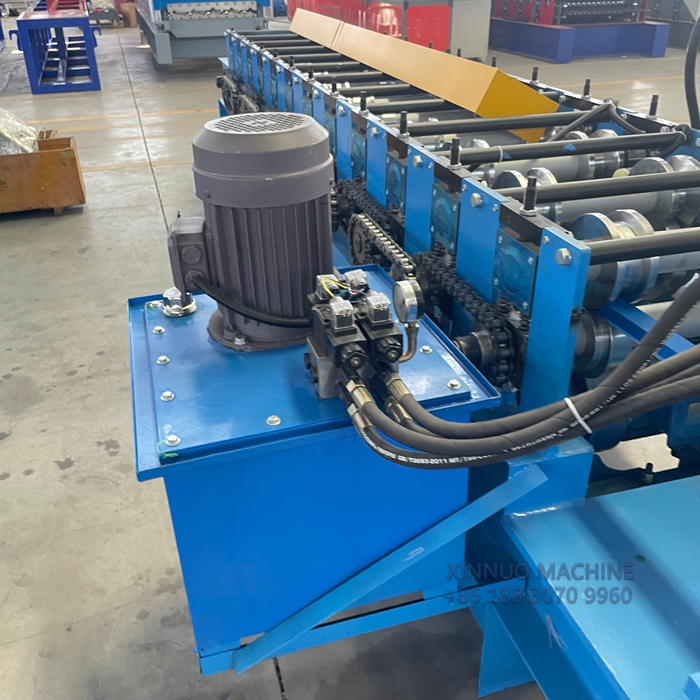

Drive mode: dual motor drive / chain drive
Total power: about 5.5 – 7.5 kW
Cutting method: hydraulic cutting, automatic length setting
Control system: PLC automatic control system (optional Chinese / English / Spanish interface)
Power requirements: 380V / 50Hz / 3 phases (customizable according to customer country)
Equipment composition:
Dual-head manual or hydraulic unwinding machine (can place two coils at the same time)
Dual main forming system (left-right symmetrical design)
Independent punching device (optional logo punching)

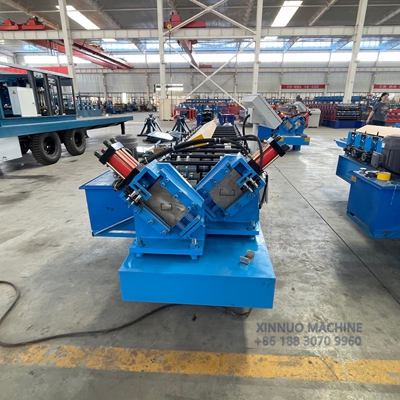

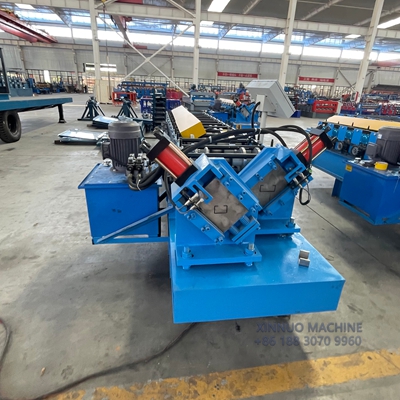

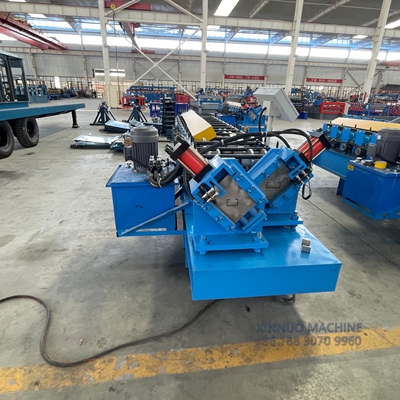

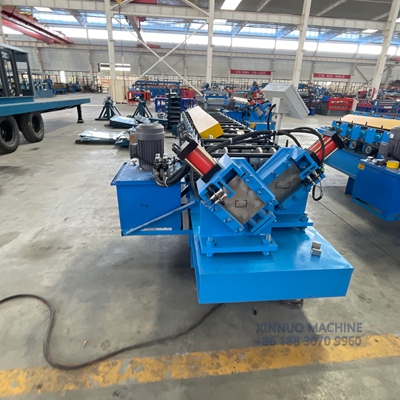

Dual-channel hydraulic cutting system
Central PLC automatic control system
Automatic unloading rack or receiving platform
Equipment advantages:
Dual-channel design: produce two models at the same time, greatly improving production capacity
Intelligent switching: support automatic cut-to-length cutting, reduce errors and waste
Space saving: one set of equipment can replace two single-row machines, occupying less space
Mold wear resistance: the forming wheel adopts high-frequency quenching process, which has a longer life
One machine for multiple uses: the size can be flexibly adjusted to adapt to a variety of C-type keel specifications
Optional language operation interface: support language customization, more convenient operation
Application areas:
Light steel keel ceiling engineering
Indoor partition wall structure system
Commercial and residential decoration construction
Building light frame system
