Key Features:
1. Smart Production Control
- Advanced automatic control software for seamless production information management, maximizing efficiency.
- Highly integrated automation system with intelligent network control for superior performance.
2. User-Friendly Design
- Optimized equipment structure for easy operation, maintenance, and mold replacement.
- Intuitive touch-screen interface with multilingual support for global users.
3. Premium Machine Components
- Feed Guide:Slider-guided structure with adjustable width and lateral positioning.
- Drive System:High-torque main motor with chain-sprocket transmission for smooth roll forming.

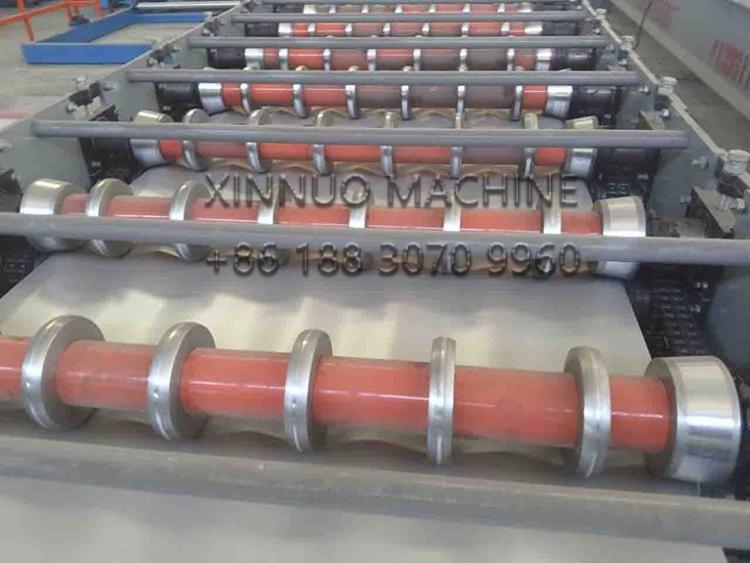

- Roller System:Precision-machined, chrome-plated rollers (0.05mm coating) for extended durability.
- Cutting Mechanism: Cr12 die steel cutter with heat treatment for sharp, long-lasting performance.
Technical Parameters:
Raw Material Type: Prepainted Steel Coil, Galvanized Steel Coil
Sheet Thickness: 0.3-0.8mm
Roller Material: 45# Chromium-Plated Steel
Forming Speed: Approx. 30 meters/minute
Discharge Speed: 30 meters/minute
Speed Control Method: Variable Frequency Drive (VFD)
Transmission Method: Gear Motor + Chain Drive
Cutting Method: Hydraulic Cutting
Cutting Blade Material: Cr12 Tool Steel
Length Measurement: Encoder Measurement
Control System: All using internationally renowned brands
Main Motor Power: 7.5 KW
Hydraulic Station Motor Power: 2.2 KW
Equipment composition:
Uncoiler (1 set)
Feeding guide (1 set)

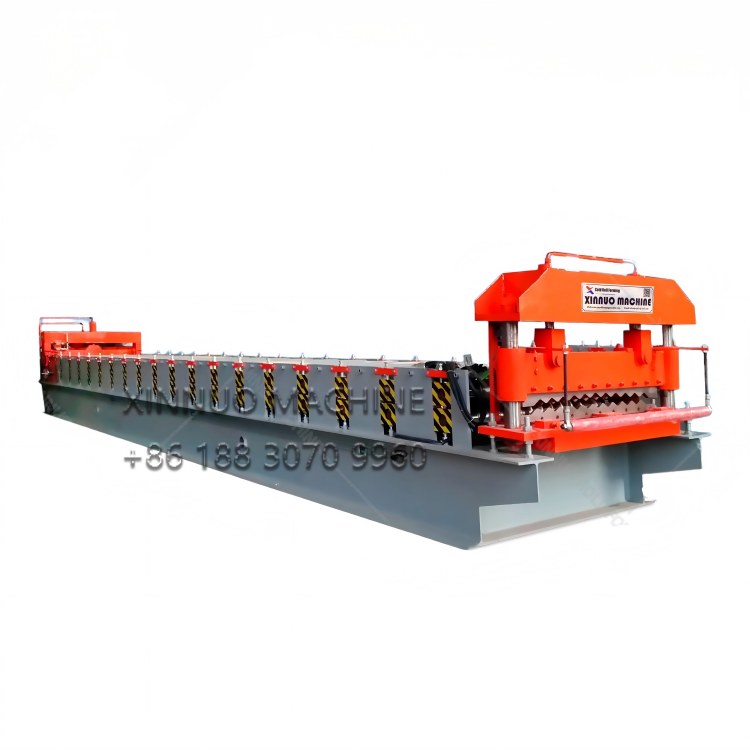

Main forming machine (1 set)
Hydraulic shut-off system (1 set)
Control system (1 set)
Discharging rack (1 set)
Reliable Performance:
- Certified Quality: ISO 9001 & CE certified.
- Extended Lifespan: Robust 82mm solid steel shaft and 20+ years of roller service life.
- Automated Cutting: Programmable cut-to-length function for consistent output.
Global Support & Service :
- Lifelong after-sales support.
- Overseas installation, commissioning, and training services available.
Applications:
Widely used in:
Automotive Manufacturing – Structural and panel components.
Construction Industry – Roofing, ceilings, wall panels, and light steel keels (C/U rails).
Industrial Products – Door panels, protective barriers, and soundproofing materials.
